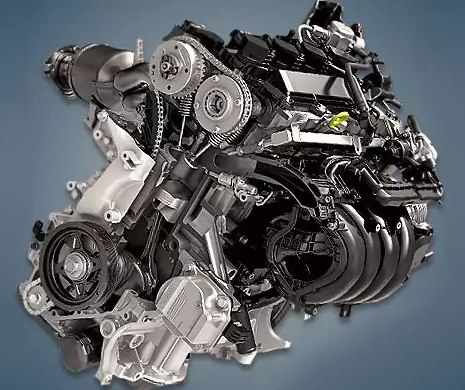

Only since 2018 has the Japanese company produced the 2.0-liter Toyota M20A-FKS engine, which is found in well-known models like the Camry, Corolla, and RAV4. The Dynamic Force line includes this unit as well as the Chinese versions M20C-FKS and M20D-FKS.
The engines A25A-FKS, A25A-FXS, M15A-FKS, M15A-FXE, M20A-FKS, M20A-FXS, and T24A-FTS are also part of the Dynamic Force family.
The engine was mounted on:
- Toyota Auris 3 (E210) since 2018;
- Toyota Avalon 5 (XX50) since 2018;
- Toyota C-HR 1 (AX10) since 2018;
- Toyota Camry 8 (XV70) since 2018;
- Toyota Corolla 12 (E210) since 2018;
- Toyota Corolla Cross 1 (XG10) since 2020;
- Toyota Harrier 4 (XU80) since 2020;
- Toyota Noah 4 (R90) since 2022;
- Toyota RAV4 5 (XA50) since 2018;
- Toyota Venza 2 (XU80) since 2020;
- Lexus ES200 7 (XZ10) since 2018;
- Lexus UX200 1 (ZA10) since 2018.
Specifications
| Production years | since 2018 |
| Displacement, cc | 1986 |
| Fuel system | combined injection D4-S |
| Power output, hp | 170 – 178 |
| Torque output, Nm | 200 – 210 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 80.5 |
| Piston stroke, mm | 97.6 |
| Compression ratio | 13.0 |
| Features | balancers |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | VVT-iE + VVT-i |
| Turbocharging | no |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Toyota RAV4 2020) — city — highway — combined |
8.2 5.2 6.4 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 98.1 |
Disadvantages of the M20A-FKS engine
Its noisy work has been the main source of complaints on specialized forums thus far.
Additionally, this engine failed to pass the EGR liquid cooler leak test.
Antifreeze may leak into the combustion chamber if this heat exchanger bursts.
The EGR valve gets completely wedged and clogged with deposits on runs longer than 100,000 kilometers.
