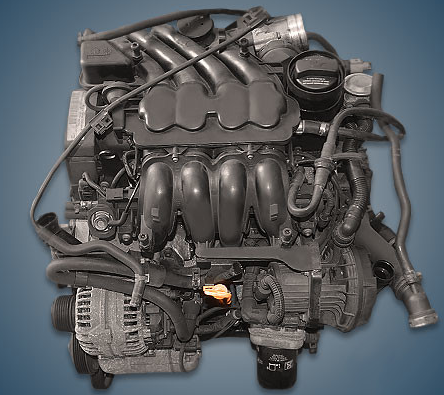

Only from 1999 to 2000 did the company produce the 1.6-liter Volkswagen 1.6 APF engine, which was fitted to the VW Polo Classic, Golf, Bora, or comparable Seat Cordoba, Leon, and Toledo. Such a unit supports Euro 4 and features an electric throttle, mass air flow sensor, EPC system, and EGR valve.
AEH, AHL, AKL, ALZ, ANA, APF, ARM, AVU, BFQ, BGU, BSE, and BSF are all part of the EA113-1.6 series.
Specifications
| Production years | 1999-2000 |
| Displacement, cc | 1595 |
| Fuel system | injector |
| Power output, hp | 100 |
| Torque output, Nm | 145 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 77.4 |
| Compression ratio | 10.3 |
| Features | EGR, EPC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-40 (approval: VW 502 00 or VW 505 00) |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for VW Polo Classic 2000) — city — highway — combined |
10.9 6.0 7.6 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Audi A3 1 (8L) in 1999 – 2000;
- Seat Cordoba 1 (6K) in 1999 – 2000;
- Seat Ibiza 2 (6K) in 1999 – 2000;
- Seat Leon 1 (1M) in 1999 – 2000;
- Seat Toledo 2 (1M) in 1999 – 2000;
- Volkswagen Bora 1 (1J) in 1999 – 2000;
- Volkswagen Golf 4 (1J) in 1999 – 2000;
- Volkswagen Polo 3 Classic (6V) in 1999 – 2000.
Disadvantages of the VW APF engine
Breakdowns occur at high mileage, but this motor is dependable and has a high resource.
The fuel pump or fuel pressure regulator is typically the cause of the power drop.
Air leaks or mass air flow sensor malfunctions are frequently the cause of unstable operation.
Low reliability is another characteristic of the mechanism for altering the intake geometry.
Near 200,000 kilometers, ring and cap wear frequently results in oil consumption.
