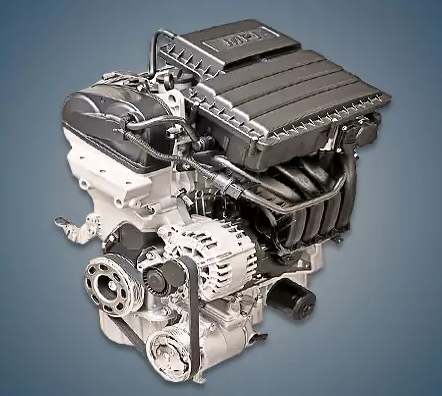

Since 2015, popular low-cost models like the Rapid or Polo Sedan have been equipped with the 1.6-liter 16-valve Volkswagen CWVB 1.6 MPI 90 hp engine. Only the firmware of this motor has the CWVA index, which sets it apart from its 110-horsepower equivalent.
CWVA, CWVB, CJZA, CJZB, CHPA, CMBA, CXSA, CZCA, CZDA, CZEA, DJKA, DACA, and DADA are all part of the EA211 series.
Specifications
| Production years | since 2015 |
| Displacement, cc | 1598 |
| Fuel system | injector |
| Power output, hp | 90 |
| Torque output, Nm | 155 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 76.5 |
| Piston stroke, mm | 86.9 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on the intake shaft |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.6 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for VW Polo Sedan 2018) — city — highway — combined |
7.8 4.6 5.8 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Skoda Rapid 1 (NH) in 2015 – 2020; Rapid 2 (NK) since 2019;
- Volkswagen Polo Sedan 1 (6C) in 2015 – 2020;
- Volkswagen Polo Liftback 1 (CK) since 2020;
- Volkswagen Jetta 6 (1B) in 2016 – 2019.
Disadvantages of the VW CWVB engine
Owners of cars with this engine typically complain about excessive lubricant consumption;
Due to the lack of an oil level sensor, these motors frequently wedge;
Lubricant gets on the timing belt when the camshaft oil seals are routinely squeezed out;
The plastic pump with two thermostats has a short lifespan and is costly to replace;
The exhaust system’s design makes the engine susceptible to vibrations during the winter.
