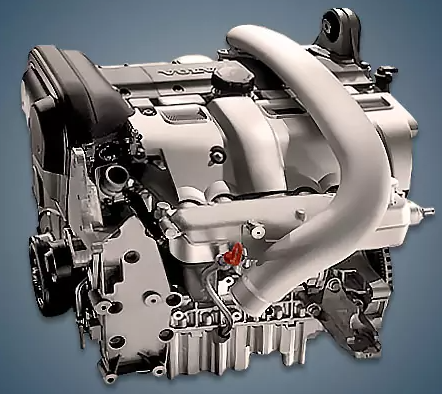

From 1999 to 2002, the company’s plant produced the Volvo B5244T 2.4-liter turbo engine, which was fitted on well-known models like the C70, S70, and V70, including its off-road variant of the XC70. The indices for other iterations of this motor were B5244T2, B5244T3, B5244T4, B5244T5, and B5244T7.
The B5234T, B5244S, B5244S2, B5244S4, B5244T, and B5244T3 are members of the 5-cylinder 2.3-2.4-liter Modular engine family.
The engine was mounted on:
- Volvo C70 I (872) in 1999 – 2002;
- Volvo S70 I (874) in 1999 – 2000;
- Volvo V70 I (875) in 1999 – 2000;
- Volvo XC70 I (876) in 1999 – 2000.
Specifications
| Production years | 1999-2002 |
| Displacement, cc | 2435 |
| Fuel system | injector |
| Power output, hp | 193 |
| Torque output, Nm | 270 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 90 |
| Compression ratio | 9.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | at the exhaust |
| Turbocharging | MHI TD04HL |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Volvo C70 2001) — city — highway — combined |
15.3 8.1 10.7 |
| Engine lifespan, km | ~275 000 |
Disadvantages of the B5244T engine
Above all, they bemoan a buggy electric choke from Magneti Marelli on specialized forums;
Oil leaks from the phase control system rank second in popularity here.
The belt is supposed to last 120,000 kilometers, but the valves will bend if it bursts before then;
Owners frequently deal with oil consumption as a result of blocked crankcase ventilation;
A small resource also sets the fuel pump, water pump, and engine mounts apart.
