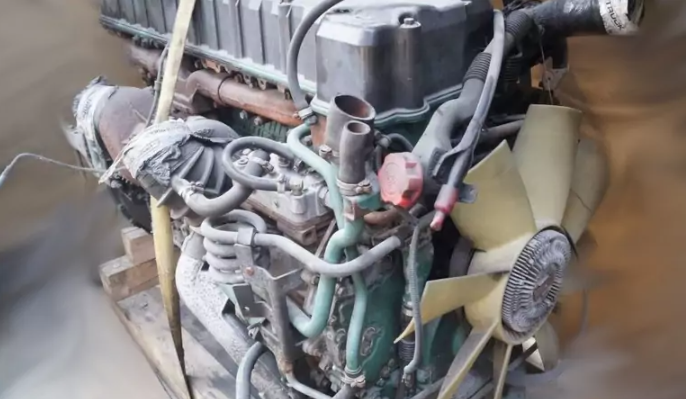

Since 1998, the D12C380 water-cooled, six-cylinder in-line diesel engine has been manufactured. For a 1 liter (1000 cc) capacity, the engine’s power index is an astounding 31 horsepower.
One row of six cylinders makes up the D12C380. This makes maintenance and repairs easier. The cylinder liners are simple to replace, and the cylinder block and cylinder head are composed of ductile iron. Engine oil is double filtered using spin-on technology, and the air filter has interchangeable inserts.
Specifications
| Engine’s type | diesel |
| Production years | 08/1998 |
| Power output, kW at rpm | 279 at 1700 |
| Power output, hp at rpm | 380 at 1700 |
| Displacement, cc | 12100 |
| Number of cylinders | 6 |
| Valves | 24 |
| Torque output, Nm / rpm | 1850 at 1100-1300 |
| Compression ratio (compression) | 18.5:1 |
| Cylinder bore | 131 mm |
| Piston stroke | 150 mm |
| Crankshaft bearings | 7 |
| Configuration | inline |
| Fuel type | diesel |
| Turbine | turbo / charge air cooler |
| Cylinder head | SOHC/OHC |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |
