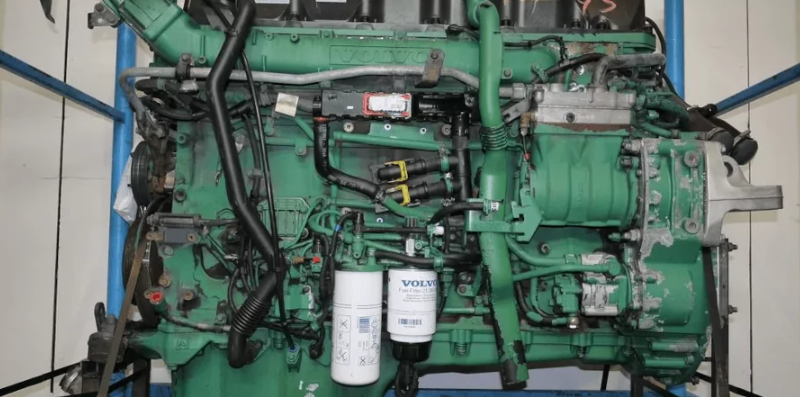

With an overhead camshaft, electronic fuel injection, and a single cylinder head, the Volvo D13A480 is an intercooled, turbocharged engine.
The D13A480 offers outstanding performance, excellent fuel economy, and high dependability. Because the camshaft drive is situated at the back of the engine, vibration is lessened and a power take-off can be installed there. To guarantee dependable engine operation, the cylinder block and cylinder head are constructed of cast iron.
Specifications
| Engine’s type | diesel |
| Production years | 09/2005 |
| Power output, kW at rpm | 353 at 1400 |
| Power output, hp at rpm | 480 at 1400 |
| Displacement, cc | 12800 |
| Number of cylinders | 6 |
| Valves | 24 |
| Torque output, Nm / rpm | 1050 at 1400 |
| Compression | 18.1:1 |
| Cylinder bore, mm | 131 |
| Piston stroke, mm | 158 |
| Crankshaft bearings | 7 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | direct injection |
| Turbine | turbo / charge air cooler |
| Euro standards | Euro 3 |
| Cylinder head | SOHC/OHC |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |
