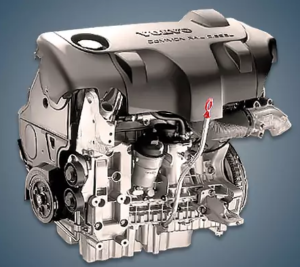

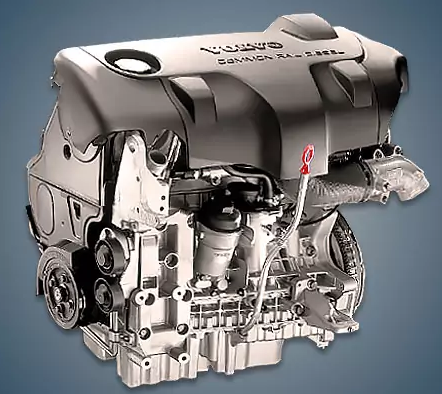

From 2001 to 2006, the company produced the 2.4-liter Volvo D5244T diesel engine, which was fitted to popular models like the S60, S80, V70, XC70, and XC90. This diesel engine is a member of the first generation of D5 power units, along with the D5244T2 engine.
The D5204T, D5244T4, and D5244T15 are diesel modular engines.
The engine was mounted on:
- Volvo S60 I (384) in 2001 – 2005;
- Volvo S80 I (184) in 2001 – 2006;
- Volvo V70 II (285) in 2002 – 2006;
- Volvo XC70 II (295) in 2002 – 2006;
- Volvo XC90 I (275) in 2002 – 2005.
Specifications
| Production years | 2001-2006 |
| Displacement, cc | 2401 |
| Fuel system | Common Rail |
| Power output, hp | 163 |
| Torque output, Nm | 340 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 18.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 6.5 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Volvo XC90 2004) — city — highway — combined |
11.9 7.5 9.4 |
| Engine lifespan, km | ~400 000 |
Disadvantages of the D5244T engine
The biggest issue for owners is unreliable fuel injectors; the fuel system’s rail pressure regulator occasionally fails; hydraulic lifters cannot withstand low-quality oils and can already knock by 100,000 kilometers; this version is the most straightforward and dependable in the series; it lacks a particulate filter, swirl flaps, and turbine electric drive.
