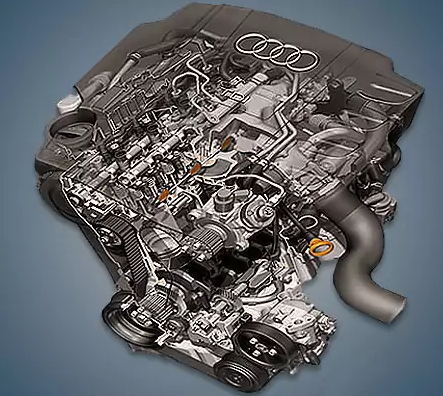

From 2007 to 2013, the company assembled the 2.0-liter Audi CAGA 2.0 TDI diesel engine, which was fitted to German models like the A4 B8, A5 8T, and Q5 8R crossover.
The EA189 series also includes: CAYC, CAAC, CAGA, CAHA, CBAB, CFCA, CFGB, CLCA, CLJA, CKTB, CFHC, CKUB.
Specifications
| Production years | 2007-2013 |
| Displacement, cc | 1968 |
| Fuel system | Common Rail |
| Power output, hp | 143 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 16.5 |
| Features | DOHC, intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Audi A4 2008) — city — highway — combined |
7.3 4.8 5.7 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 165 |
The engine was installed on:
- Audi A4 B8 (8K) in 2007 – 2013;
- Audi A5 1 (8T) in 2010 – 2013;
- Audi Q5 1 (8R) in 2009 – 2013;
- Seat Exeo 1 (3R) in 2008 – 2013.
Disadvantages of the Audi CAGA engine
Here, the fuel’s quality has a significant impact on the piezo injectors’ lifespan.
These diesels had an oil pump hex issue up until 2009.
Additionally, these motors enjoy pressing oil from beneath the plastic valve cover.
When the timing belt breaks after 180,000 kilometers, the valves bend.
Many issues can arise with an EGR valve and particulate filter after 200,000 kilometers.
