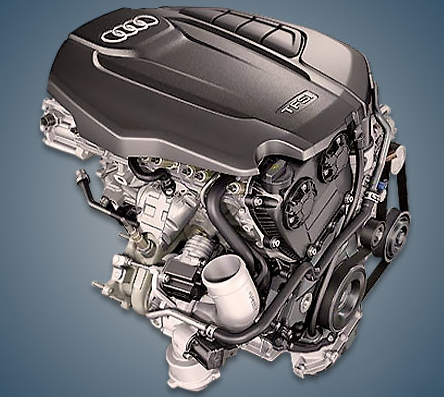

From 2011 to 2015, the 1.8-liter gasoline turbocharged Audi CJEB 1.8 TFSI was manufactured. It was fitted to well-known company models like the A4 in the rear of the B8 and the A5 in the rear of the 8T. This motor has two additional modifications: CJED (144 horsepower/280 Nm) and CJEE (177 horsepower/320 Nm).
The EA888 gen3 series includes: CJSA, CJSB, CJEB, CHHA, CHHB, CXDA, CNCD, CJXC.
Specifications
| Production years | 2011-2015 |
| Displacement, cc | 1798 |
| Fuel system | FSI + MPI |
| Power output, hp | 170 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 84.2 |
| Compression ratio | 9.6 |
| Features | DOHC, AVS |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | IHI IS12 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.2 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Audi A4 2014) — city — highway — combined |
7.4 4.8 5.7 |
| Engine lifespan, km | ~275 000 |
| Weight, kg | 138 |
The engine was installed on:
- Audi A4 B8 (8K) in 2011 – 2015;
- Audi A5 1 (8T) in 2011 – 2015.
Disadvantages of the Audi CJEB engine
The primary issues with this engine are related to a decrease in the system’s oil pressure;
This is caused by clogged bearing strainers or oil pump malfunctions;
Here, the timing chain is quickly removed, and the phase regulators are short-lived;
Numerous cooling system malfunctions: a pump with a thermostat or valve N488 is leaking; boost pressure actuator adjustments typically help with frequent power outages.
