Overview & Design Features

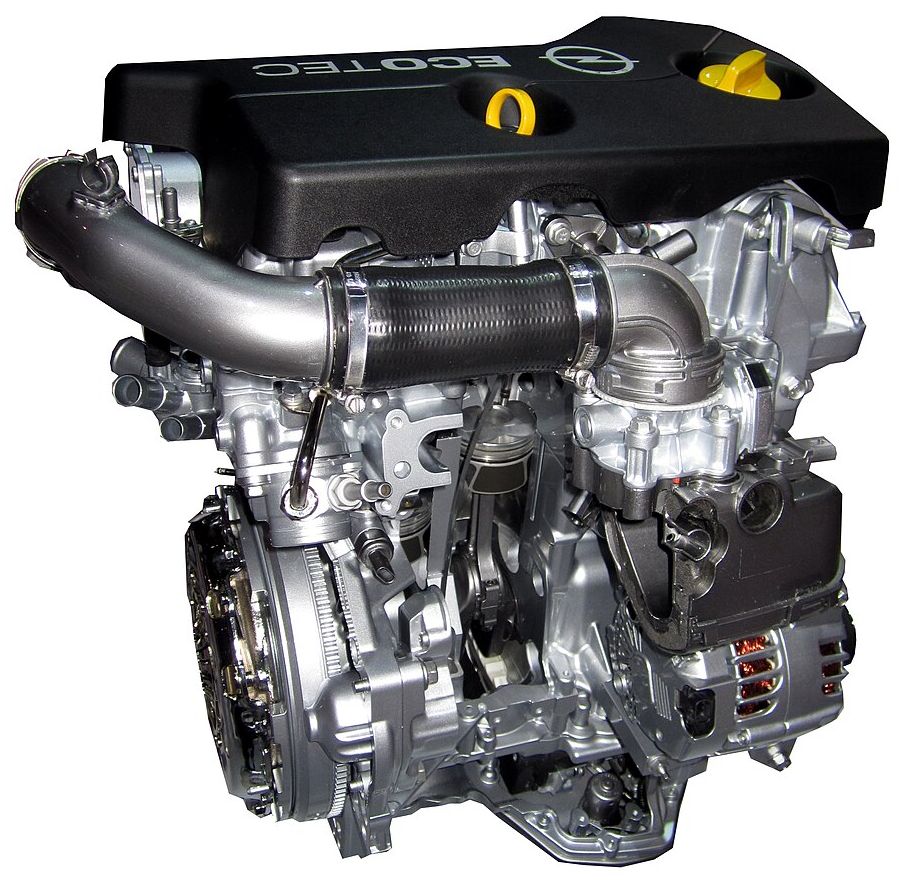

The GM Ecotec LDF engine is an advanced, downsized powerplant developed by General Motors as part of the eighth-generation Ecotec engine family. This 1.5-liter, turbocharged inline-four engine balances high power output with excellent thermal efficiency and low emissions. It acts as a premium, technologically sophisticated option for compact luxury crossover vehicles, signaling GM’s transition toward highly optimized, small-displacement turbocharged internal combustion engines.
Constructed with an all-aluminum cylinder block and head, the LDF engine minimizes weight to improve vehicle handling dynamics. It features a direct fuel injection system operating at a high pressure of 350 bar, ensuring optimal fuel atomization. The valvetrain utilizes a Double Overhead Camshaft (DOHC) layout equipped with GM’s innovative TriPower sliding camshaft technology. This system enables three operating profiles: high valve lift for peak performance, low valve lift for fuel conservation, and active fuel management. The engine is also paired with a 48-volt mild-hybrid (MHEV) electrical system to recapture energy and assist during acceleration.
The Ecotec LDF engine made its prominent debut powering the compact luxury crossover Cadillac GT4 starting in 2023. Beyond Cadillac models, this engine is also utilized in other premium and upper-midrange vehicles under the SAIC-GM umbrella, including the Buick Envoy, Buick Verano Pro, and Buick LaCrosse in select global markets.
Technical Specifications
| Displacement (cc) | 1498 cc |
| Max Power (hp (kW) @ RPM) | 211 hp (155 kW) @ 5500 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 270 Nm (27.5 kg*m) @ 1750-4500 RPM |
| Fuel Type | Gasoline (Premium unleaded recommended) |
| Fuel Consumption (l/100 km) | Approx. 6.7 l/100 km (combined cycle) |
| Engine Type | Turbocharged Inline-4 with 48V Mild Hybrid (MHEV) |
| Compression Ratio | 10.5:1 |
| Cylinder Bore (mm) | 75.0 mm |
| Piston Stroke (mm) | 84.8 mm |
| Valvetrain | DOHC with TriPower variable valve lift |
| Valves per Cylinder | 4 |
| Additional Info | Direct fuel injection (350 bar), aluminum block and cylinder head |
Common Problems & Reliability
While the Ecotec LDF is designed to be highly efficient, its complex technology presents specific areas of concern for long-term ownership. The primary mechanical weak points include:
- Carbon Buildup: Because the engine uses direct fuel injection, fuel does not wash over the intake valves. Over time, carbon deposits accumulate on the valves, which can restrict airflow and cause engine misfires.
- TriPower Mechanism Sensitivity: The sliding camshaft system is highly sensitive to oil quality. Delayed oil changes can cause the solenoids to fail, locking the engine in a single valve-lift profile.
- Mild-Hybrid Components: The 48-volt electrical architecture adds a complex belt-driven starter-generator. These components face heavy loads during urban driving, leading to potential wear of the accessory drive.
With proper care and strict maintenance, the realistic expected service life before requiring a major mechanical overhaul is approximately 250,000 kilometers.
Maintenance Tips & Service Schedule
To guarantee the reliable operation and longevity of this engine, specific maintenance intervals must be utilized:
- Engine Oil: Change the oil and filter every 7,500 to 10,000 kilometers or once a year. Always use a full synthetic oil that meets the GM dexos1 Gen 3 specification, with a viscosity rating of 0W-20.
- Spark Plugs: Replace spark plugs every 50,000 to 60,000 kilometers to prevent misfires and maintain fuel efficiency under high boost pressure.
- Cooling System: Flush the dual-circuit cooling system, which services the engine and liquid-cooled intercooler, with Dex-Cool coolant every 5 years or 100,000 kilometers.
- Valvetrain Cleaning: Perform a professional intake valve cleaning service every 60,000 kilometers to prevent performance degradation caused by carbon buildup.
Conclusion
The Cadillac GM Ecotec LDF engine stands out as an exceptionally efficient and technologically advanced powertrain. For a used vehicle buyer, it represents a solid and safe choice, provided the previous owner has a fully documented maintenance history showing timely oil changes with the correct dexos-certified lubricant. Its blend of mild-hybrid efficiency and turbocharged performance makes it highly appealing, though buyers must remain mindful of the eventual maintenance costs.
