Overview & Design Features

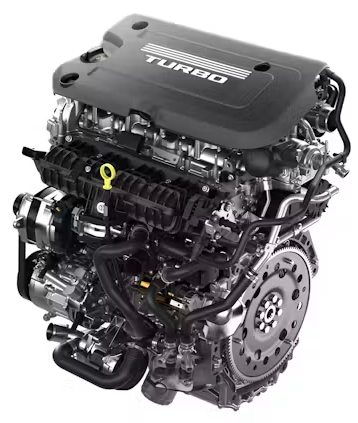

The GM Ecotec LSY engine is a highly advanced, turbocharged inline-four gasoline engine developed by General Motors. Introduced for the 2019 model year, this power plant belongs to the Cylinder Set Strategy (CSS) engine family, succeeding the previous LTG engine. It was engineered to prioritize thermal efficiency, low-end torque delivery, and reduced exhaust emissions, making it a key powertrain solution for Cadillac’s modern premium vehicle segment.
At its core, the LSY engine features an all-aluminum cylinder block and cylinder head, which minimizes weight and optimizes heat dissipation. Fuel delivery is handled by a direct injection system operating at pressures up to 350 bar to ensure optimal fuel atomization. The engine’s signature engineering hallmark is the Tripower valvetrain system. This system incorporates three distinct operating modes: a high-valve lift mode for maximum performance, a low-valve lift mode for optimized efficiency during partial loads, and Active Fuel Management (cylinder deactivation), which allows the engine to run on only two cylinders under light load conditions to conserve fuel.
This engine is deployed widely across several premium vehicles within the General Motors lineup. It is found in models such as the Cadillac XT4 (2019–present), Cadillac XT5 (2020–present), Cadillac XT6 (2020–present), Cadillac CT4 (2020–present), and Cadillac CT5 (2020–present). It is also utilized in other brand models like the Chevrolet Blazer and GMC Acadia, typically mated to a 9-speed automatic transmission.
Technical Specifications
| Displacement (cc) | 1998 cc |
| Max Power (hp (kW) @ RPM) | 237 hp (177 kW) @ 5000 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 350 Nm (35.7 kg*m) @ 1500–4000 RPM |
| Fuel Type | Premium Unleaded Gasoline (91 octane or higher recommended) |
| Fuel Consumption (l/100 km) | Approximately 7.8 to 9.4 l/100 km (combined cycle depending on vehicle model) |
| Engine Type | Turbocharged Inline 4-cylinder |
| Compression Ratio | 10.0:1 |
| Cylinder Bore (mm) | 83.0 mm |
| Piston Stroke (mm) | 92.3 mm |
| Valvetrain | DOHC with Tripower Variable Valve Lift and Active Fuel Management |
| Valves per Cylinder | 4 (16 valves total) |
| Additional Info | Twin-scroll turbocharger, integrated exhaust manifold, engine start-stop technology |
Common Problems & Reliability
- Coolant Control Valve Failure: The LSY engine replaces the traditional mechanical thermostat with an electronically controlled rotary coolant control valve. This valve is prone to internal mechanical or electrical failure, which can trigger check engine lights (specifically trouble code P00B7), disrupt proper engine heating, or cause potential overheating if not addressed immediately.
- Carbon Buildup on Intake Valves: As a direct-injected engine, fuel is sprayed directly into the combustion chamber rather than over the intake valves. Consequently, oil vapors from the positive crankcase ventilation (PCV) system can collect on the dry intake valves over time, forming carbon deposits. This buildup can cause rough idling, reduced fuel economy, and occasional misfires at higher mileages.
- Expected Service Life: When maintained according to the manufacturer’s strict specifications, the GM Ecotec LSY engine has an expected service life of 240,000 to 300,000 kilometers (150,000 to 180,000 miles) before requiring significant mechanical overhauls.
Maintenance Tips & Service Schedule
- Engine Oil: Use only full synthetic engine oil meeting GM Dexos1 Gen 3 specifications, specifically with a 0W-20 viscosity rating. Regular oil changes should occur every 8,000 to 10,000 kilometers (5,000 to 6,000 miles) to protect the twin-scroll turbocharger bearings and keep the complex hydraulic actuators for the Tripower system clean.
- Spark Plugs: Replace the high-grade iridium spark plugs every 96,000 kilometers (60,000 miles) to maintain consistent combustion efficiency and prevent ignition coil failure.
- Cooling System: Flush the engine coolant every 160,000 kilometers (100,000 miles) or every 5 years. This prevents sediment accumulation that could damage the sensitive rotary coolant control valve.
- Intake Valve Cleaning: It is highly recommended to perform a professional chemical intake valve cleaning service every 60,000 to 80,000 kilometers (37,000 to 50,000 miles) to mitigate the effects of direct-injection carbon buildup.
Conclusion
The Cadillac GM Ecotec LSY engine is a highly engineered, efficient, and technologically advanced powerplant. While the sophisticated Tripower valvetrain and complex cooling systems require disciplined maintenance, the engine remains a strong and reliable choice on the used car market. Potential buyers of a used LSY-powered vehicle should verify a complete maintenance history, paying close attention to regular synthetic oil changes and the functional state of the cooling system components.
