Overview & Design Features

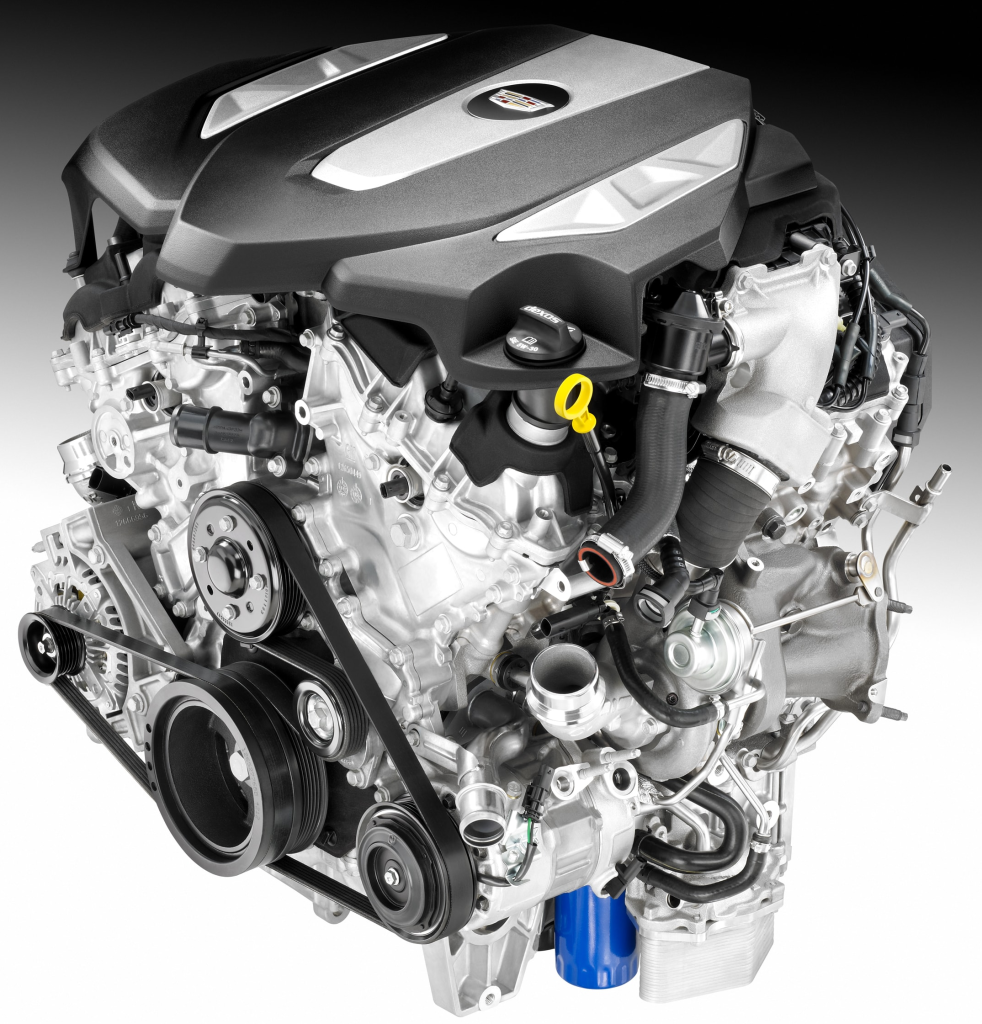

The GM High Feature LGW is a sophisticated 3.0-liter twin-turbocharged V6 engine developed by General Motors specifically for its luxury Cadillac brand. Launched in 2016, the LGW represents a high-performance, downsizing-oriented pinnacle of the GM High Feature engine family. This powerhouse was engineered to deliver the performance of a traditional V8 while maintaining the packaging efficiency and fuel economy of a six-cylinder configuration, establishing itself as a benchmark for Cadillac’s modern sedan lineup.
The structural architecture of the LGW features a lightweight, high-strength sand-cast aluminum cylinder block with cast-in-iron cylinder liners. It utilizes aluminum cylinder heads with integrated exhaust manifolds, which allow the twin turbochargers to be bolted directly to the heads for quicker boost response. Fuel delivery is handled by a high-pressure direct injection system that sprays fuel directly into the combustion chambers. The valvetrain features dual overhead camshafts (DOHC) with continuously variable valve timing (VVT) on both intake and exhaust valves, optimizing gas exchange across the entire RPM range. Notably, the LGW is equipped with Active Fuel Management (AFM), a cylinder deactivation system that shuts down two cylinders under light load conditions to improve fuel efficiency.
This engine was deployed exclusively in Cadillac’s premium rear-wheel-drive and all-wheel-drive passenger cars. Specifically, the LGW was the flagship powerplant for the Cadillac CT6 sedan from its debut in the 2016 model year through the conclusion of its North American production in 2020. It was primarily paired with an 8-speed automatic transmission, which was later upgraded to a 10-speed automatic transmission to maximize both acceleration and highway cruise efficiency.
Technical Specifications
| Displacement (cc) | 2,997 cc |
| Max Power (hp (kW) @ RPM) | 404 hp (301 kW) @ 5,700 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 542 Nm (55.3 kg*m) @ 2,500–5,100 RPM |
| Fuel Type | Premium Unleaded Petrol |
| Fuel Consumption (l/100 km) | Approximately 11.2 l/100 km (combined) |
| Engine Type | Twin-Turbocharged V6 (90-degree) |
| Compression Ratio | 9.8:1 |
| Cylinder Bore (mm) | 86.0 mm |
| Piston Stroke (mm) | 85.8 mm |
| Valvetrain | DOHC, Chain Drive, Continuously Variable Valve Timing (VVT) |
| Valves per Cylinder | 4 |
| Additional Info | Features Active Fuel Management, integrated water-to-air intercoolers, and low-inertia turbine wheels |
Common Problems & Reliability
While the LGW is a highly engineered machine, it exhibits specific mechanical vulnerabilities that owners should monitor. Firstly, like most direct-injection engines, it is susceptible to carbon buildup on the intake valves. Because fuel is sprayed directly into the cylinders, the intake valves are not washed clean by gasoline, leading to carbon deposits over time that can restrict airflow and cause rough idling or power loss. Secondly, the complex timing chain system, inherited from the High Feature V6 design, requires clean oil to operate correctly. Neglected oil changes can accelerate chain wear, leading to chain stretch, guide failure, and costly engine damage. Lastly, the integrated water-to-air intercooler system should be monitored for internal coolant leaks, which can lead to coolant consumption and combustion issues.
Under proper care and with strict adherence to maintenance schedules, the GM High Feature LGW engine is capable of achieving a reliable service life of 240,000 to 300,000 kilometers (150,000 to 185,000 miles) before requiring a major mechanical overhaul.
Maintenance Tips & Service Schedule
Proactive maintenance is crucial to preserving the longevity of the high-performance LGW engine. The following guidelines outline the essential service requirements:
- Engine Oil Changes: Replace the engine oil and filter every 8,000 to 10,000 kilometers (5,000 to 6,000 miles). It is imperative to use premium full synthetic oil meeting the GM dexos1 Gen 2 or Gen 3 specifications, with a viscosity of 5W-30, to protect the turbocharger bearings and timing chain components.
- Spark Plug Replacement: Install new iridium-tipped spark plugs every 80,000 to 100,000 kilometers (50,000 to 60,000 miles) to prevent ignition misfires under high boost.
- Cooling System Care: The engine utilizes a dual cooling system (one loop for the engine block, one loop for the intercoolers). Flush both cooling circuits every 150,000 kilometers (90,000 miles) or 5 years using GM-approved Dex-Cool coolant.
- Intake Valve Cleaning: Perform a professional chemical intake tract cleaning every 50,000 kilometers (30,000 miles) to mitigate carbon deposit accumulation.
Conclusion
The GM High Feature LGW twin-turbo V6 is a technically sophisticated engine that offers an excellent balance of refined power and modern efficiency. For used vehicle buyers, it represents a highly desirable option, provided there is a documented history of consistent oil changes and diligent maintenance. Prospective buyers should perform a thorough pre-purchase inspection, focusing on timing chain noise and potential turbocharger wear, to ensure a trouble-free ownership experience.
