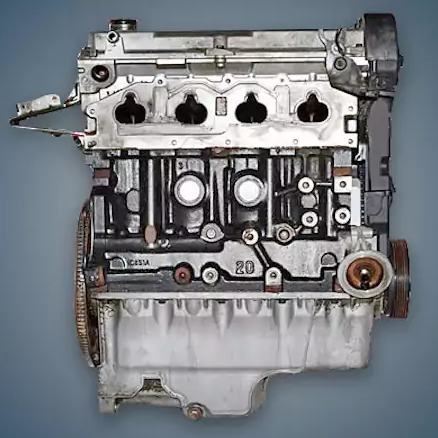

The 2.0-liter Ford NGA, also known as the Mondeo 2.0 Zetec engine, was manufactured between 1993 and 1998 and was fitted to the first two Mondeo generations’ various bodies. The only power unit in the line that was available in both Zetec and Zetec-E versions is this one.
The engines L1E, L1N, EYDC, RKB, NGA, EYDB, EDDB, and EDDC are also members of the Zetec family.
The engine was installed on:
- Ford Mondeo Mk1 in 1993 – 1996;
- Ford Mondeo Mk2 in 1996 – 1998.
Specifications
| Production years | 1993-1998 |
| Displacement, cc | 1988 |
| Fuel system | distributed injection |
| Power output, hp | 131 – 136 |
| Torque output, Nm | 176 – 180 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84.8 |
| Piston stroke, mm | 88 |
| Compression ratio | 10.0 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Ford Mondeo 1997) — city — highway — combined |
11.5 6.1 8.1 |
| Engine lifespan, km | ~350 000 |
Disadvantages of the Ford NGA engine
A clogged fuel tank filter is typically the cause of intermittent power outages; if the issue is ignored for an extended period of time, an expensive fuel pump will need to be replaced;
Grease seeps through the pressure sensor and front or rear crankshaft oil seals; high-voltage wires, particularly the longest one from the fourth cylinder, rot; hydraulic lifters are terrified of low-quality oil and can knock on 80,000 kilometers.
