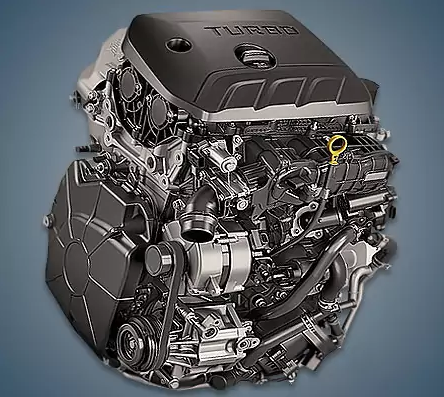

Since 2019, the General Motors LIH 1.2-liter 3-cylinder turbo engine has been manufactured in Korea and is found in crossovers built on the VSS-F platform, including the Chevrolet Trailblazer 3 and Buick Encore GX. This unit has been modified for the Opel Astra under the F12SHL, F12SHT, and F12SHR indices.
E-Turbo family: LIH, L3T.
Specifications
| Production years | since 2019 |
| Displacement, cc | 1193 |
| Fuel system | direct injection |
| Power output, hp | 137 |
| Torque output, Nm | 219 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 90 |
| Compression ratio | 9.5 – 10.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | DCVCP |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 6d |
| Fuel consumption, L/100 km (for Buick Encore GX 2021) — city — highway — combined |
8.4 6.2 7.8 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 102 |
The engine was installed on:
- Buick Encore GX 1 (VSS-F) since 2019;
- Buick Envista 1 (VSS-F) since 2022;
- Chevrolet Trailblazer 3 (VSS-F) since 2020;
- Chevrolet Trax 2 (VSS-F) since 2023.
Disadvantages of the GM LIH engine
The Start-Stop system’s noises, vibrations, and glitches are criticized on specialized forums.
It has carbon buildup on the intake valves, just like all direct injection engines.
You must replace the lubricant as frequently as you can because it has a timing belt in an oil bath.
There are still a lot of complaints regarding how the EVAP fuel vapor recovery system operates.
