Overview & Design Features

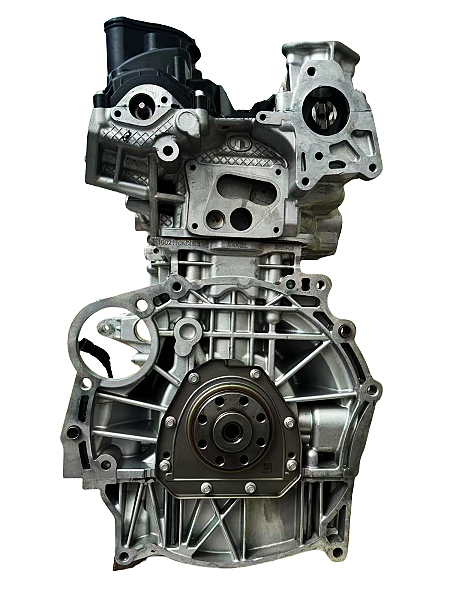

The Haval GW4G15E is a naturally aspirated, 1.5-liter (1497 cc) inline four-cylinder gasoline engine produced by Great Wall Motor, the parent company of Haval. Introduced as a workhorse powertrain for a range of compact and subcompact vehicles, the GW4G15E variant is recognized for its cost-effectiveness, relatively straightforward design, and widespread application across various markets. It represents a fundamental building block in Haval’s early propulsion strategy, providing reliable performance for everyday driving scenarios.
Engineered for efficiency and durability, the GW4G15E features an all-aluminum construction for both its cylinder block and cylinder head, contributing to reduced overall vehicle weight and improved thermal management. Fuel delivery is managed via multi-point electronic fuel injection (MPI), a proven system known for its robust performance and relative simplicity. The valvetrain incorporates a Double Overhead Camshaft (DOHC) design with 16 valves, complemented by Variable Valve Timing (VVT) on the intake camshaft. This VVT system optimizes valve overlap and lift for improved low-end torque and better fuel economy, balancing performance across the RPM range. The design emphasizes a balance between manufacturing cost, ease of maintenance, and adequate power output for its intended applications.
The Haval GW4G15E engine has been a prevalent power unit in several key models across the Great Wall Motor and Haval lineups. It was notably deployed in the Haval H1 and specific trims of the Haval H2, primarily in its early production years. Additionally, this engine powered various Great Wall Motor branded vehicles, including the Great Wall Voleex C30 and C50 sedans, and the Great Wall C20R hatchback, typically during the 2010s. Its widespread use underscores its role as a versatile and reliable engine for compact family vehicles and entry-level SUVs.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement | 1497 cc |
| Max Power | 105 hp (78 kW) @ 6000 RPM |
| Max Torque | 138 Nm (14.1 kg*m) @ 4200 RPM |
| Fuel Type | Gasoline (RON 92+) |
| Fuel Consumption (Combined) | Approximately 6.8 – 7.5 l/100 km (varies by vehicle and driving conditions) |
| Engine Type | Inline 4-cylinder, Naturally Aspirated |
| Compression Ratio | 10.5:1 |
| Cylinder Bore | 75 mm |
| Piston Stroke | 84.7 mm |
| Valvetrain | DOHC 16-valve with VVT (Intake) |
| Valves per Cylinder | 4 |
| Additional Info | Multi-Point Electronic Fuel Injection (MPI), Aluminum Block and Head |
Common Problems & Reliability
The Haval GW4G15E is generally considered a reliable engine, particularly given its naturally aspirated and MPI design, which tends to be less complex than turbocharged, direct-injection counterparts. However, like any engine, it exhibits some common wear points and potential issues over extended mileage.
- Oil Leaks: Owners may encounter oil leaks, particularly from the valve cover gasket and the oil pan gasket, as the rubber and silicone seals degrade with age and heat cycles. These are typically minor and repairable by replacing the respective gaskets.
- Ignition System Components: Failures of ignition coils and spark plugs are relatively common as vehicles age. Worn spark plugs or faulty ignition coils can lead to misfires, rough idling, reduced power, and increased fuel consumption. Timely replacement is crucial.
- VVT Actuator Issues: While less frequent, the VVT actuator on the intake camshaft can occasionally malfunction. Symptoms may include a rattling noise during start-up, rough idle, or a check engine light indicating VVT system errors. This can impact engine efficiency and performance.
With diligent maintenance and the use of quality fluids, the Haval GW4G15E engine can typically achieve a service life of 200,000 to 250,000 kilometers (approximately 125,000 to 155,000 miles) before requiring a major overhaul. Neglecting routine service can significantly reduce this lifespan.
Maintenance Tips & Service Schedule
Proactive maintenance is key to maximizing the longevity and reliability of the Haval GW4G15E engine. Adhering to manufacturer-recommended service intervals and using appropriate fluids is paramount.
- Engine Oil and Filter: Perform oil and filter changes every 5,000-7,500 kilometers (3,000-4,500 miles) or every 6 months, whichever comes first. Recommended oil viscosity is typically 5W-30 or 5W-40, meeting API SN or higher specifications. Regular changes are crucial due to the engine’s design and operating conditions.
- Spark Plugs: Replace spark plugs every 40,000-60,000 kilometers (25,000-37,000 miles). Using genuine or high-quality OEM-equivalent spark plugs is recommended to ensure proper ignition and fuel efficiency.
- Air Filter: Inspect the air filter at every service interval and replace it every 15,000-20,000 kilometers (9,000-12,000 miles) or more frequently if operating in dusty conditions. A clean air filter is essential for optimal combustion and engine health.
- Coolant System: Flush and refill the engine coolant every 2 years or 40,000 kilometers (25,000 miles). Use a high-quality ethylene glycol-based coolant suitable for aluminum engines to prevent corrosion and maintain proper cooling.
- Timing Chain: The GW4G15E utilizes a timing chain, which is generally designed to last the lifetime of the engine. However, it should be inspected for excessive slack or noise around 100,000-120,000 kilometers (60,000-75,000 miles). Timely oil changes are critical for timing chain lubrication and longevity.
- Fuel Filter: The fuel filter is typically integrated into the fuel pump assembly or located externally. Refer to the specific vehicle’s service manual for replacement intervals, usually every 60,000-80,000 kilometers (37,000-50,000 miles).
Conclusion
The Haval GW4G15E engine offers a balanced proposition for vehicle owners seeking an economical and relatively dependable powertrain. Its naturally aspirated 1.5-liter design, coupled with multi-point injection and VVT, provides adequate performance for compact vehicles without excessive complexity. While it is not a powerhouse, its strength lies in its simplicity and cost-effective maintenance. For a used vehicle buyer, a car equipped with the GW4G15E can be considered a safe choice, provided a comprehensive service history is available and regular maintenance has been consistently performed. Buyers should prioritize vehicles that have received regular oil changes and address minor issues like gasket leaks promptly to ensure a long and trouble-free ownership experience. Overall, it serves as a robust and practical engine solution within its segment.
