Overview & Design Features

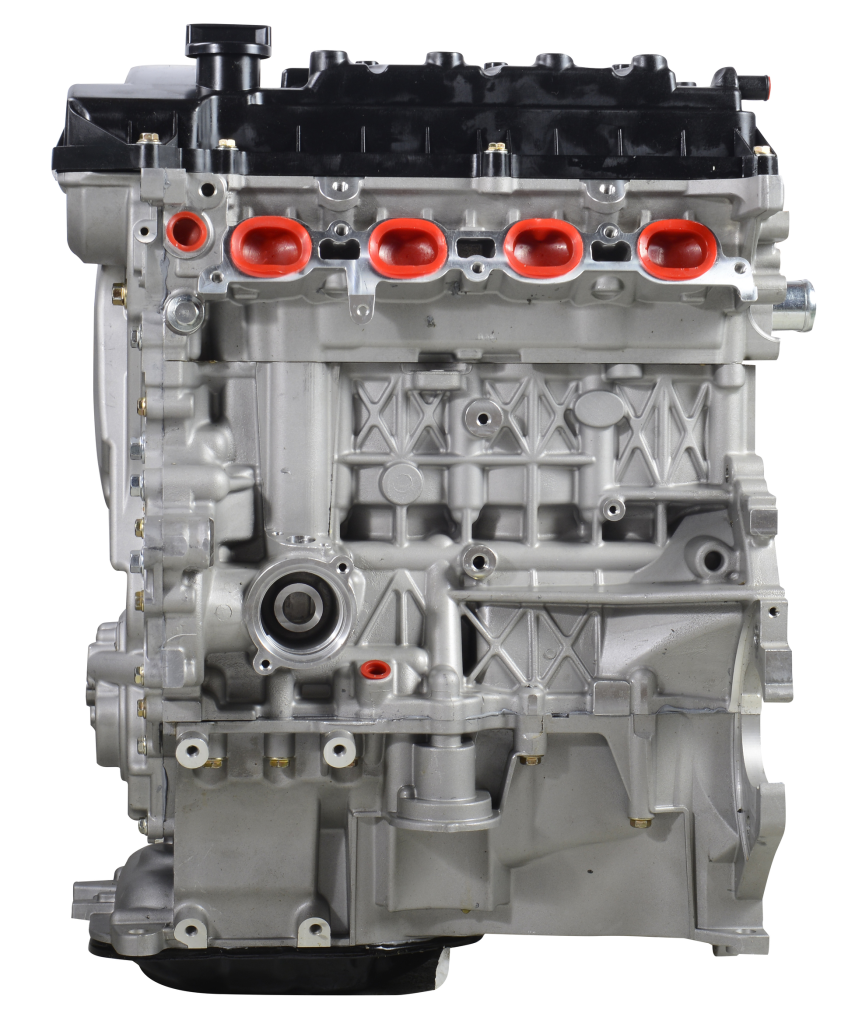

The Haval GW4G15H is a 1.5-liter, inline-four, turbocharged gasoline engine developed by Great Wall Motor (GWM) for its Haval SUV brand. Introduced as a key powertrain option for several of Haval’s popular compact and mid-size SUVs, this engine represents a significant step in GWM’s commitment to producing efficient yet powerful engines. Its widespread deployment underscores its importance in the brand’s global market strategy, offering a balance of performance and fuel economy suitable for daily driving and varied road conditions.
Engineered with a lightweight all-aluminum alloy cylinder block and cylinder head, the GW4G15H utilizes a dual overhead camshaft (DOHC) design with 16 valves (four per cylinder). It incorporates a modern multi-point fuel injection (MPFI) system combined with variable valve timing (VVT) technology on both intake and exhaust camshafts to optimize combustion efficiency across the RPM range. The inclusion of a turbocharger further enhances power output and torque delivery, providing robust performance without significantly increasing displacement, contributing to both responsiveness and efficiency.
The GW4G15H engine was primarily deployed in key Haval models, including the Haval H2 (first generation, pre-facelift models from approximately 2014 to 2018) and certain variants of the Haval H6 Sport. It also found application in some Great Wall C50 sedan models, demonstrating its versatility across different vehicle platforms within the GWM family. These applications typically paired the engine with either manual or automatic transmissions, catering to a broad spectrum of driver preferences.
Technical Specifications
| Displacement (cc) | 1497 |
| Max Power (hp (kW) @ RPM) | 150 hp (110 kW) @ 5600 rpm |
| Max Torque (Nm (kg*m) @ RPM) | 210 Nm (21.4 kg*m) @ 2200-4500 rpm |
| Fuel Type | Gasoline (RON 92 or higher recommended) |
| Fuel Consumption (l/100 km) | 7.5 – 8.5 (Combined Cycle, varies by vehicle) |
| Engine Type | Inline 4-cylinder, DOHC |
| Compression Ratio | 9.3:1 |
| Cylinder Bore (mm) | 75.0 |
| Piston Stroke (mm) | 84.7 |
| Valvetrain | DOHC, Chain-driven |
| Valves per Cylinder | 4 (Total 16) |
| Additional Info | Turbocharged, Variable Valve Timing (VVT) |
Common Problems & Reliability
The Haval GW4G15H engine, while generally robust, exhibits a few common issues typical of its design and application. One notable area of concern can be the turbocharger assembly. While designed for longevity, improper oil maintenance or aggressive driving can accelerate wear on the turbo bearings, leading to decreased boost pressure, increased oil consumption, or audible whining noises. Early symptoms often include reduced power and efficiency. Another observed issue involves oil leaks, particularly from the valve cover gasket, front crankshaft seal, or oil pan gasket, which can develop with higher mileage due to material degradation. These leaks, if left unaddressed, can lead to lower oil levels and potential damage to other engine components.
Furthermore, occasional reports point to issues with sensors, specifically oxygen sensors or camshaft position sensors, which can cause erratic engine behavior, check engine lights, and diminished fuel economy. These are typically simpler electronic component replacements. With diligent maintenance, including regular oil changes with the correct specification, the GW4G15H engine is engineered for a respectable service life. Under optimal conditions and consistent preventative care, an expected service life before requiring a major overhaul typically ranges from 250,000 to 300,000 kilometers.
Maintenance Tips & Service Schedule
- Engine Oil: Regular oil and filter changes are paramount for turbocharged engines. Replacement is recommended every 10,000 kilometers or every 6 months, whichever comes first. Use a high-quality synthetic oil conforming to API SN/SP standards with a viscosity grade of 5W-30 or 5W-40, as specified by the manufacturer.
- Spark Plugs: Replace iridium spark plugs every 40,000 to 60,000 kilometers to ensure optimal ignition and fuel efficiency. Adherence to this interval prevents misfires and unnecessary strain on the ignition system.
- Timing System: The GW4G15H utilizes a timing chain, which is generally designed for the life of the engine. However, periodic inspection of the timing chain tensioner and guides is advisable at higher mileages (e.g., every 100,000-150,000 kilometers). Listen for rattling noises which may indicate chain stretch or tensioner wear.
- Coolant Flush: Perform a coolant system flush and refill every 40,000 kilometers or every 2-3 years, utilizing the manufacturer-specified long-life coolant. This maintains cooling system efficiency and prevents corrosion.
- Air and Fuel Filters: Inspect the air filter at every service and replace it every 20,000 kilometers or annually, especially in dusty environments. The fuel filter should be replaced every 40,000 to 60,000 kilometers to prevent fuel delivery issues and protect fuel injectors.
- Turbocharger Inspection: Periodically inspect the turbocharger’s intake and exhaust sides for shaft play, oil leaks, or damage to the impeller blades. Ensure all boost hoses are secure and free from cracks.
Conclusion
The Haval GW4G15H engine stands as a competent and generally reliable turbocharged powertrain for the vehicles it serves. Its blend of modern engineering, including VVT and turbocharging, provides a good balance of power and efficiency for its class. For a used vehicle buyer, this engine can be a safe and practical choice, provided a comprehensive service history is available, demonstrating consistent adherence to maintenance schedules. Diligent oil changes, particularly, are crucial for turbocharger longevity. Vehicles equipped with the GW4G15H offer respectable performance and affordability, making them a viable option in the compact SUV segment, assuming proper care has been exercised throughout their operational life.
