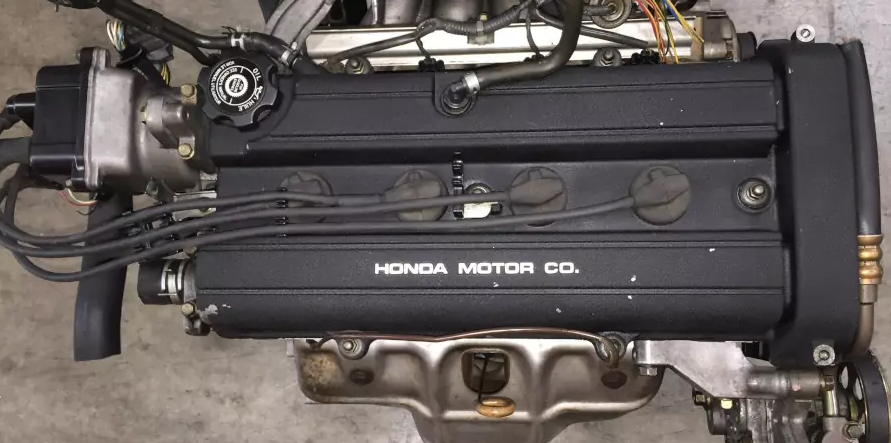

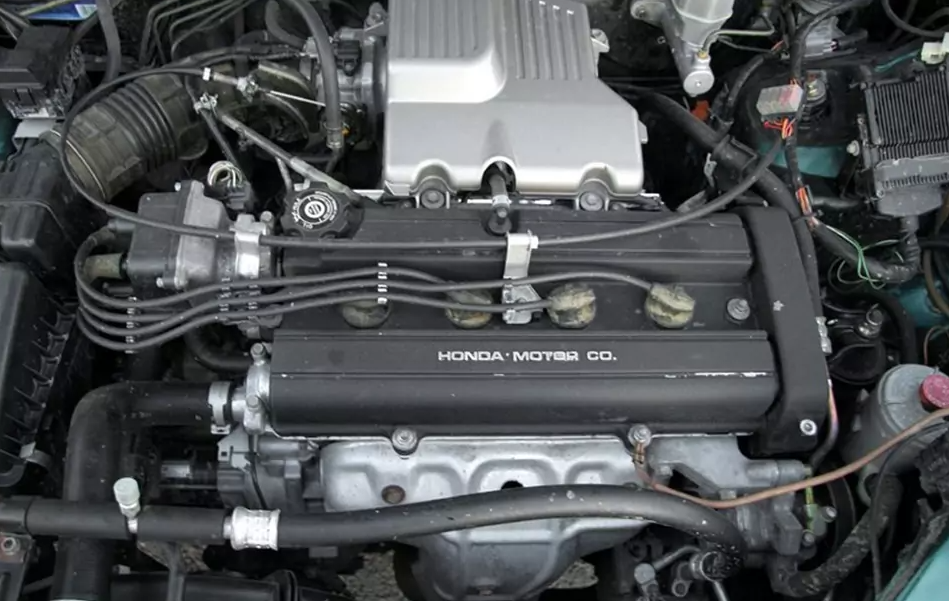

Honda’s largest and most well-liked B-series engine is the B20B. An aluminum cylinder block with steel liners serves as the model for the representatives of this series. The engine features a sixteen-valve twin-shaft head. It makes use of a timing belt that needs to be changed on time to prevent breaking. Because the engine lacks hydraulic lifters, the valves must be adjusted on a regular basis. The VTEC variable valve timing system does not exist.
The first generation of the CR-V crossover is the main product of the 2.0-liter Honda B20B engine, which was manufactured from 1995 to 2002. The only difference between the two generations of the B20B motor is the level of forcing.
Internal combustion engines (B16A, B16B, B18B, and B18C) are also part of the B-series.
The engine was mounted on:
- Honda CR-V 1 (RD) in 1995 – 2000;
- Honda Orthia 1 (EL) in 1996 – 2002;
- Honda S-MX 1 (RH) in 1996 – 2002;
- Honda Stepwgn 1 (RF) in 1996 – 2001.
Specifications
| Production years | 1995-2002 |
| Displacement, cc | 1972 |
| Fuel system | injector |
| Power output, hp | 125 – 140 (B20B4) 145 – 150 (B20B8) |
| Torque output, Nm | 180 (B20B4) 190 (B20B8) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 89 |
| Compression ratio | 8.8 – 9.2 (B20B4) 9.4 – 9.6 (B20B8) |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Honda CR-V 1998) — city — highway — combined |
12.6 8.6 10.0 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 150 |
Disadvantages of the Honda B20B engine
This power unit only breaks down at high mileage and is incredibly dependable;
Owners typically deal with oil leaks via camshaft seals;
The pump and thermostat are the cooling system’s weak points;
The chance of an unexpected cylinder head gasket failure rises after 150–200 thousand kilometers;
Since there are no hydraulic lifters, valve adjustment is necessary every 40,000 kilometers.
B20B Engine Repair Parts List
| Full name of the part | Part code |
| Piston rings Honda B20B d84.0 STD 1.2-1.2-2.8 (13011-P3F-003) 4 cylinders TP | 32387-STD |
| Piston rings Honda B20B d84.0+0.5 1.2-1.2-2.8 4 cylinders TP | 32387 0.50 |
| Piston rings Honda B20B d84.0+1.0 1.2-1.2-2.8 4 cylinders TP | 32387 1.00 |
| Valve | V94094 |
| Valve | V94093 |
| Valve guide bush | VAG92400 |
| Valve guide bush | VAG92399 |
| BELT TIMING BELT | TB616 |
| Complete set of Honda gaskets B20B DOHC 16V 1997 (06110-PHK-A00) Eristic | EF6240 |
| Upper Gasket Set Honda B20B DOHC 16V 1997 (06110-PHK-A00) Eristic | EH6240 |
| Head gasket Honda B20B DOHC 16V 1997 (12251-P8R-004) Eristic | EG624 |
| Valve stem seals | 12-53593-01 |
| Stuffing box camshaft Honda 27x43x9 Payen | NJ254 |
| Water pump Honda CR-V 2.0 16V (19200-P75-003) Ruville | 67400 |
| Basic liners | MS-2215GP STD |
| Basic liners Honda B16A Taiho | M461H-STD |
| Connecting rod bushings Honda Accord A20A 87- Taiho | R454H-STD |
| Connecting rod bushings | CB-2200GP STD |
| Semi-rings persistent | TW-2215A STD |
| Semi-rings persistent Honda B16A Taiho | T461A-STD |
| Semi-rings persistent Honda L13A/L15A/LDA (13331-PR3-004/3) Taiho | T468A-STD |
| Air conditioning compressor Honda CRV 97-01 Original | 38810-P3F-006 |
| V-ribbed belt 4PK850 Contitech | 4 PK 850 |
| V-ribbed belt BMW 318iS M44B19, Honda CRV, Kia Clarus | 4 PK 890 |
| V-ribbed belt Honda Civic 1,3, Citr. ZX, Nis. Almera | 4 PK 815 |
| Stop light 12V 21/5W W3x16Q, four pin (for Japanese) (Osram 7515, Philips 12066) Monark | 091 612 154 |
| Stop light 12V W5W 2,1×9,5D (Osram 2825, Philips 12961) Monark | 091 712 033 |
| Mini fuses set 6 things (5A-15A) Monark | 099 837 975 |
| Piston without rings Honda CR-V B20B4 d84.0+0.50 (13010-P3F-A00) Teikin | 38154 0.50 |
| Water pump assembled | 50005788 |
| Fuel filter Honda Accord 1.8i-2.2i 16V, Civic 1.5i-1.8i 16V KS | 50 013 824 |
| Piston without rings Honda CR-V B20B4 d84.0 STD (13010-P3F-A00) Teikin | 38154 STD |
| Pallet gasket Honda (041-EP616) B20Z2 Eristic | EP616 |
