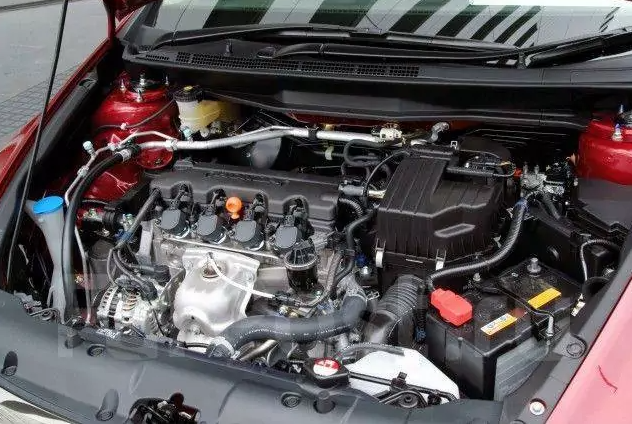

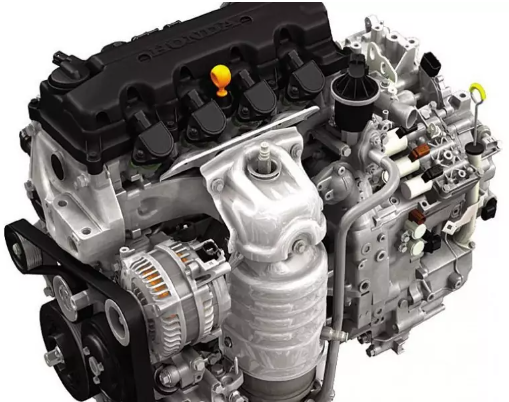

Since 2006, the Japanese company has assembled the 2.0-liter Honda R20A gasoline engine, which is fitted to several of the company’s well-known models, including the Civic, Accord, and CR-V crossover. There are a few variations of this unit that are not very different from one another.
An oversized R18A is all that this two-liter unit is. A long-stroke crankshaft allowed the volume to be increased from 1.8 liters to 2.0. The intake manifold was also impacted by the modifications, and the motor now had balancing shafts. One camshaft, sixteen valves, and the iVTEC system were still present in the cylinder head. motor that lacks hydraulic lifters. The motor has a more urban character and better traction at low and medium speeds than the previous version with the K20 index. The engine is now more affordable, dependable, and straightforward.
The R18A is an internal combustion engine that is part of the R-series.
The engine was mounted on:
- Acura ILX 1 (DE1) in 2012 – 2015;
- Honda Accord 8 (CU) in 2008 – 2015;
- Honda Civic 9 (FB) in 2012 – 2015;
- Honda CR-V 3 (RE) in 2006 – 2012; CR-V 4 (RM) in 2011 – 2018; CR-V 5 (RW) in 2017 – 2021;
- Honda Stepwgn 4 (RK) in 2009 – 2015;
- Honda Stream 2 (RN6) in 2006 – 2014;
- Proton Perdana (CP3) in 2013 – 2020.
Specifications
| Production years | since 2006 |
| Displacement, cc | 1997 |
| Fuel system | injector |
| Power output, hp | 150 – 155 |
| Torque output, Nm | 185 – 195 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 96.9 |
| Compression ratio | 10.5 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | i-VTEC |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Honda Accord 2009) — city — highway — combined |
9.4 5.9 7.2 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 110 |
Disadvantages of the Honda R20A engine
This engine has high requirements for fuel and oil quality;
Bad gasoline causes the lambda probes to burn out and the catalyst to rapidly collapse;
Strong knocks from the adsorber valve’s operation irritate a lot of Honda owners;
Engine mounts and drive belt tensioners are comparatively small resources; valve clearances must be periodically adjusted because there are no hydraulic lifters.
R20A Engine Repair Parts List
| Full name of the part | Part code |
| Crankshaft | 13310RZP000 |
| Flywheel | 22100RZP005 |
| Torque converter | 26000RWK305 |
| Connecting rod | 13210RZP000 |
| Intake valve guide bush | 12204-PJ7-305 |
| Exhaust valve guide bush | 12205-PJ-7305 |
| Intake valve spring | 14761RNAA01 |
| Exhaust valve spring | 14762RNAA01 |
| Valve cracker | 14781RGMA01 |
| Hydraulic compensator | 14820RNAA01 |
| Axis of the rocker arms | 14631RNAA00 |
| Camshaft gear | 14211RNAA01 |
| Valve train chain | 14401RNAA01 |
| Head gasket | 12251-RNA-A02 |
| Valve cover gasket | 71-40021-00 |
| Converter gasket | 18115RNA004 |
| Exhaust pipe gasket | 18229-S6D-003 |
| Rear crankshaft oil seal | 91214PWA003 |
| Front crankshaft oil seal | 91212-RNA-A01 |
| Front crankshaft oil seal | 91212RTA003 |
| Camshaft bed plug Honda R18A1 25x35x17 (12513-P72-003) Eristic | OS6012 |
| Oil pressure sensor | 37241RNAA01 |
| Oil level gauge | 37310RSAG02 |
| Expansion tank | 19101RZAA00 |
| Thermostat with gasket | 19301RNA305 |
| Thermostat with gasket | 19301RNA306 |
| Fuel level sensor | 17047SWWE00 |
| Intake manifold | 17100RNAA00 |
| Upper main bearing | 13321RZP003 |
| Upper main bearing | 13322RZP003 |
| Upper main bearing | 13323RZP003 |
| Upper main bearing | 13324RZP003 |
| Upper main bearing | 13325RZP003 |
| Upper main bearing | 13326RZP003 |
| Lower main bearing | 13341RZP003 |
| Lower main bearing | 13342RZP003 |
| Lower main bearing | 13343RZP003 |
| Lower main bearing | 13344RZP003 |
| Lower main bearing | 13345RZP003 |
| Lower main bearing | 13346RZP003 |
| Connecting rod bearing | 13211RNEA01 |
| Connecting rod bearing | 13212RNEA01 |
| Connecting rod bearing | 13213RNEA01 |
| Connecting rod bearing | 13214RNEA01 |
| Connecting rod bearing | 13215RNEA01 |
| Connecting rod bearing | 13216RNEA01 |
| Semi-rings persistent | 13331-PNA-004 |
| Gummi motoraufhaengung | 50850SWCE02 |
| SUMMI,GETRIEBEAUFHAENGUNG | 50850SWAA81 |
| Assembled generator | 31100RZPG01 |
| Starter | 31200RNAA01 |
| Ignition coil | 30520RNAA01 |
| Spark plug | 9807B561BW |
| Air filter | 17220RZPG00 |
| Oil filter | 15400RTA003 |
| Fuel filter assembled | 17048SWWE00 |
| Cabin filter | 80292SWWG01 |
| V-ribbed belt | 31110RWK004 |
| Belt tensioner pulley | 31190RNA003 |
| Thermostat gasket | 19305PLCA00 |
| Radiator drain plug | 19011PH1621 |
| Middle part of the muffler | 18220SWWE01 |
| Fuel tank | 17044SWWE00 |
| Assembled fuel pump | 17045SWWE00 |
| Crankcase ventilation pipe | 17137RZPG00 |
| Liquid cooling tube, metal | 19505RNAA00 |
| Oil filler cap seal | 15613PC6000 |
| Timing chain damper | 14530RNAA01 |
| Piston pin | 13111RNAA00 |
| Piston rings | 13021RZP003 |
| Piston rings | 13021RZP004 |
| Piston rings | 13011-RZP-004 |
| Piston kit | 13020RNAY00 |
| Piston kit | 13010RNAY00 |
| Downpipe of the exhaust system | 18210SWWE01 |
| Oil drain plug | 90009PY3000 |
| Coolant drain plug (from the cylinder block) | 90001PM3003 |
| Intake manifold gasket | 17105RNAA01 |
| Coolant pump gasket | 19222RNAA00 |
| Rear generator bearing | 31111PT0003 |
| Front generator bearing | 31114PGKA01 |
| Coolant radiator | 19010RZPG51 |
| Injector ramp | 16620RNAA01 |
| Oil nozzle | 15280RZP000 |
| Fuel injector | 16450RZP003 |
| Pin Retaining Rings | 13115RNAA00 |
| Valve spring plate, upper | 14765RGA000 |
| Valve spring plate, lower | 14775P08000 |
| Crankshaft gear | 13620RZP003 |
| Alternator pulley | 31141RZPG01 |
| Crankshaft pulley | 13810-RZP-003 |
| Engine coolant radiator hose, upper | 19501RZPG01 |
| Lower engine coolant hose | 19502RZPG01 |
| Oil dipstick | 15650RZP000 |
| Inlet valve | 14711RNAA00 |
| Exhaust valve | 14721P2A000 |
| Valve lid | 12310RNAA01 |
| Upper gasket set | 06110-RZP-000 |
| Lower gasket set | 06114RNAZ00 |
| Coolant pump | 19200RZP013 |
| Drive belt tensioner | 31170RZPG01 |
| Timing chain tensioner | 14510RNAA01 |
| Neutralizer | 18160RZPG01 |
| Intake valve oil scraper cap | 12210PZ1004 |
| Exhaust valve oil scraper cap | 12211PZ1004 |
| Rocker assembly | 14620RNAA01 |
| Air filter housing | 17201-RZP-G00 |
| Thermostat housing | 19320RNAA00 |
| Coolant radiator cap | 19045RAA003 |
| Expansion tank cap | 19102RNAA00 |
| Lower lambda probe | 36532RNAA01 |
| Oil pump | 15100RZP003 |
| Oil pan | 11200RZVE02 |
| Cylinder head (“empty”) | 12200RNAA00 |
| Cylinder head (assy) | 10003RZP000 |
| Starter Solenoid Relay | 31204RNA003 |
| Rocker nut | 90206PM3004 |
| Throttle valve | 16400RZVG01 |
| Rear muffler | 18307SWWE01 |
| Fuel filler neck | 17660SWAQ01 |
| Fuel filler plug | 17670SJA013 |
| Knock sensor | 30530RNAA01 |
| Mass air flow sensor | 37980RNAA01 |
| Crankshaft position sensor | 37500RAAA01 |
| Camshaft position sensor | 37510RNAA01 |
| Coolant temperature sensor | 37870PLC004 |
| Tank for gasoline vapors | 17300SNA003 |
| Timing chain tensioner shoe | 14520RNAA01 |
| Starter Bendix | 31207PCA003 |
| Cylinder block “empty” | 11000RZP000 |
| Torque converter bolt | 957010601408 |
| Flywheel bolt | 90011PNAB00 |
| Adjusting bolt | 14744PM3000 |
| Connecting rod bolt | 13204RNAA01 |
| Crankshaft pulley bolt | 90017PCX013 |
| Cylinder head bolts | 90005RNAA01 |
| Camshaft | 14110RZP000 |
| Balance Shaft Liner | 13435RZP004 |
| LAMBDASONDE | 36531RNA003 |
| Motorbefestigung | 50880SWAA01 |
| Motorbefestigung | 50880SWCE81 |
| Motorbefestigung | 50890SWAA02 |
| Motorbefestigung | 50890SWAA81 |
| Sensor | 37870RZA007 |
| Short-block | 10002RZVE00 |
