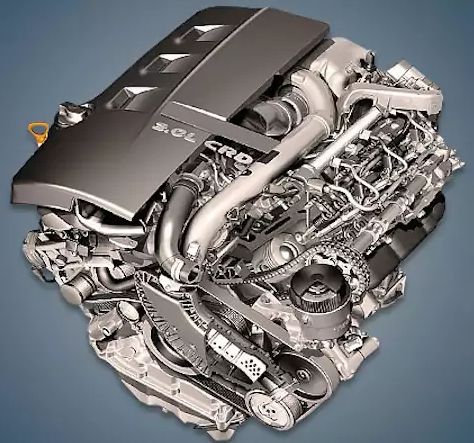

The popular SUV Grand Cherokee Commander and the Chrysler 300 sedan were equipped with the 3.0-liter diesel V6 Jeep EXL or 3.0 CRD engine, which was manufactured between 2005 and 2010. This diesel engine, which has its own index OM642 DE 30 LA, was provided by Daimler AG.
The ENE, ENF, and EDJ internal combustion engines are also part of the Mercedes lineup.
The engine was mounted on:
- Chrysler 300C 1 (LX) in 2005 – 2010;
- Jeep Commander 1 (XK) in 2006 – 2010;
- Jeep Grand Cherokee 3 (WK) in 2005 – 2010.
Specifications
| Production years | 2005-2010 |
| Displacement, cc | 2987 |
| Fuel system | Common Rail |
| Power output, hp | 218 |
| Torque output, Nm | 510 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 92 |
| Compression ratio | 18 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GT2056V |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.5 |
| Fuel type | diesel |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Jeep Grand Cherokee 2007) — city — highway — combined |
13.1 8.6 10.2 |
| Engine lifespan, km | ~320 000 |
Disadvantages of the EXL engine
The fuel system and erratic piezo injectors are the primary issues;
Additionally, the intake manifold flaps in this diesel engine are frequently wedge-like and dirty;
The motor is well-known for its frequent leaks, and by 100,000 kilometers, it is typically covered in oil; additionally, the heat exchanger flows particularly vigorously, which causes the liners to lift up;
Crumbs from a cracking exhaust manifold ruin the turbine’s brief operation.
