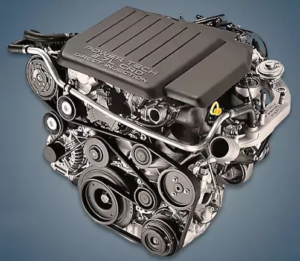

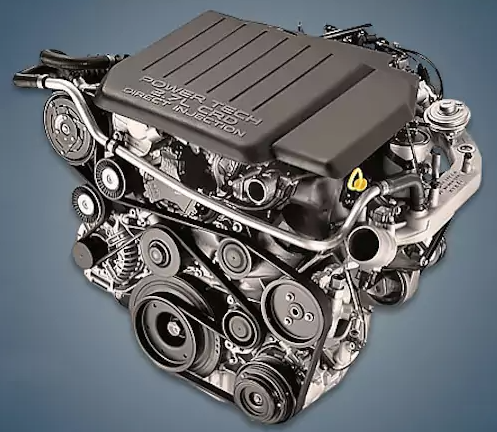

Only European versions of the WJ Grand Cherokee SUV were equipped with the 2.7-liter R5 diesel engine Jeep ENF or 2.7 CRD, which was manufactured between 2002 and 2005. This diesel had its own index, OM 612 DE 27 LA, and was manufactured by Daimler AG.
Internal combustion engines (EDJ, ENE, and EXL) are also available in the Mercedes series.
The engine was mounted on:
- Jeep Grand Cherokee 2 (WJ) in 2002 – 2005.
Specifications
| Production years | 2002-2005 |
| Displacement, cc | 2685 |
| Fuel system | Common Rail |
| Power output, hp | 163 |
| Torque output, Nm | 400 |
| Cylinder block | cast iron R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 88 |
| Piston stroke, mm | 88.3 |
| Compression ratio | 18 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GT2256V |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 7.5 |
| Fuel type | diesel |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Jeep Grand Cherokee 2003) — city — highway — combined |
12.5 8.1 9.7 |
| Engine lifespan, km | ~350 000 |
Disadvantages of the ENF engine
The use of outdated refractory washers and bolts for maintenance is the cause of the well-known issue of nozzle coking and challenging disassembly.
Additionally, this series of diesel engines is well-known for accelerated camshaft wear;
The timing chain and its sprockets have a limited lifespan of approximately 200,000 kilometers; additionally, the injector and boost pressure sensor wiring frequently burns out.
