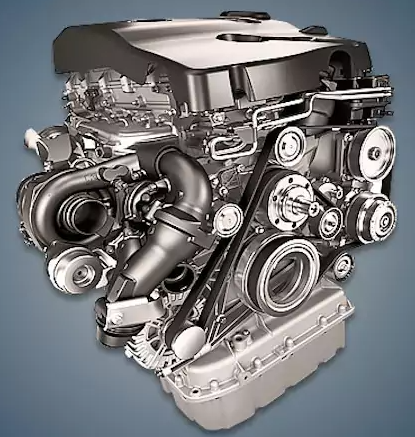

European versions of popular models like the Caliber, Patriot, and Compass were equipped with the 2.2-liter R4 diesel engine Jeep ENE or 2.2 CRD, which was manufactured between 2010 and 2015. This Mercedes diesel engine from Daimler AG is identified by the index OM 651 DE 22 LA.
Internal combustion engines like the EDJ, ENF, and EXL are also part of the Mercedes lineup.
The engine was mounted on:
- Dodge Caliber 1 (PM) in 2010 – 2011;
- Jeep Compass 1 (MK) in 2011 – 2015;
- Jeep Patriot 1 (MK) in 2010 – 2011.
Specifications
| Production years | 2010-2015 |
| Displacement, cc | 2143 |
| Fuel system | Common Rail |
| Power output, hp | 136 – 163 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 99 |
| Compression ratio | 16.2 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain/gear |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.5 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Jeep Compass 2012) — city — highway — combined |
7.9 5.9 6.7 |
| Engine lifespan, km | ~300 000 |
Disadvantages of the ENE engine
The Delphi piezo injectors on the first-generation engines were replaced by a revocable company;
The fuel system’s metering valve in the rail is another vulnerability;
The motor could be in danger if the variable displacement oil pump fails;
The intake manifold should be the first place to look for air leaks because it frequently cracks. This diesel engine also frequently experiences antifreeze leaks from the thermostat and pumps.
