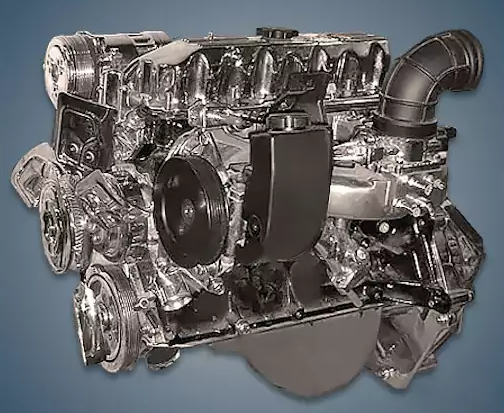

From 1983 to 2002, the Jeep EPE or AMC 150 2.5-liter gasoline engine was manufactured and fitted to the company’s well-known SUVs, including the Wrangler, Comanche, and Cherokee. A carburetor was used until 1985, followed by TBI single injection until 1990 and MPI distributed injection after that.
Internal combustion engines (ERH) are also part of the AMC series.
The engine was mounted on:
- Dodge Dakota 1 (AN) in 1995 – 1996;
- Dodge Dakota 2 (DN) in 1996 – 2002;
- Eagle Premier in 1987 – 1989;
- Jeep Cherokee 2 (XJ) in 1983 – 2001;
- Jeep Comanche 1 (MJ) in 1985 – 1992;
- Jeep Wrangler 1 (YJ) in 1986 – 1995;
- Jeep Wrangler 2 (TJ) in 1986 – 2002.
Specifications of the carburetor version 1983 – 1985
| Production years | 1983-1985 |
| Displacement, cc | 2464 |
| Fuel system | carburetor |
| Power output, hp | 105 |
| Torque output, Nm | 179 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 98.4 |
| Piston stroke, mm | 81 |
| Compression ratio | 9.2 |
| Features | OHV |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 0 |
| Engine lifespan, km | ~300 000 |
Specifications of the single injection version 1986 – 1990
| Production years | 1986-1990 |
| Displacement, cc | 2464 |
| Fuel system | single injection |
| Power output, hp | 117 – 121 |
| Torque output, Nm | 183 – 191 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 98.4 |
| Piston stroke, mm | 81 |
| Compression ratio | 9.2 |
| Features | OHV |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | 92 |
| Euro standards | EURO 1 |
| Engine lifespan, km | ~330 000 |
Specifications of the injector version 1991 – 2002
| Production years | 1991-2002 |
| Displacement, cc | 2464 |
| Fuel system | injector |
| Power output, hp | 120 – 130 |
| Torque output, Nm | 190 – 200 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 98.4 |
| Piston stroke, mm | 81 |
| Compression ratio | 9.1 |
| Features | OHV |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | 92 |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Jeep Cherokee 1995) — city — highway — combined |
13.2 9.1 11.7 |
| Engine lifespan, km | ~350 000 |
Disadvantages of the EPE engine
Although these power units are robust and dependable, their age is noticeable;
The engine has undergone numerous modifications, and some spare parts are extremely hard to locate;
This engine’s carburetor-equipped versions are particularly troublesome to operate;
The rear crankshaft oil seal frequently leaks at high mileage, and replacing it is costly; outdated or subpar antifreeze significantly shortens the pump’s and thermostat’s lifespan.
