Overview & Design Features

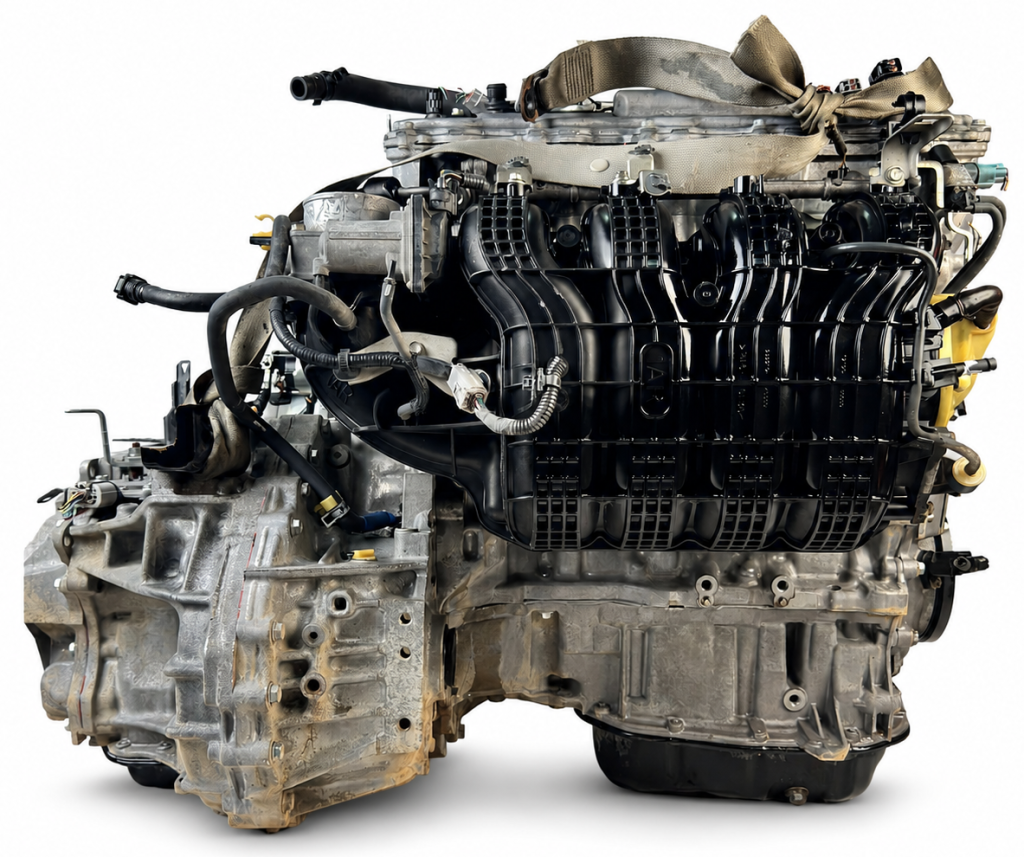

The Lexus 2AR-FE is an inline four-cylinder gasoline engine, part of Toyota’s AR engine family, which succeeded the highly popular AZ engine series. Primarily manufactured by Toyota Motor Corporation, this 2.5-liter (2494 cc) engine was engineered with a focus on fuel efficiency, reduced emissions, and robust reliability. Its widespread adoption across various Toyota and Lexus models underscores its significance as a core powertrain for front-wheel-drive and all-wheel-drive platforms, becoming a cornerstone of the brand’s mid-size vehicle offerings from its introduction in 2008.
Constructed with an aluminum alloy cylinder block and head, the 2AR-FE benefits from a lightweight yet rigid design that aids both performance and thermal management. It features a Dual Overhead Camshaft (DOHC) valvetrain with 16 valves (four per cylinder), actuated by a low-friction roller rocker arm system. A key technological highlight is the implementation of Dual VVT-i (Variable Valve Timing with intelligence) on both the intake and exhaust camshafts, optimizing valve overlap and timing across the engine’s operating range for improved power delivery, fuel economy, and emission control. Fuel delivery is handled by multi-point port fuel injection, a tried-and-true system known for its dependability and cost-effectiveness. The engine also incorporates an Acoustic Control Induction System (ACIS) to vary the length of the intake manifold runners, enhancing volumetric efficiency at different RPMs.
The 2AR-FE engine has seen extensive deployment across numerous Lexus and Toyota vehicle lines. In Lexus vehicles, it powered the Lexus ES 250 (XV60, XV70 generations, primarily for select markets) and the Lexus RX 270 (AL10 generation). Its broader application within the Toyota lineup includes the Toyota Camry (XV50, XV70 generations), Toyota RAV4 (XA30, XA40 generations), Toyota Highlander (XU40, XU50 generations), Toyota Sienna (XL30), and the Toyota Venza (GV10). It was also utilized in the Scion tC (AT20) and various other international market vehicles, solidifying its role as a versatile and widely trusted powerplant.
Technical Specifications
| Displacement (cc) | 2494 cc |
| Max Power (hp (kW) @ RPM) | 178-184 hp (133-137 kW) @ 6000 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 231-235 Nm (23.5-24 kg*m) @ 4100 RPM |
| Fuel Type | Gasoline (Unleaded, 87+ RON recommended) |
| Fuel Consumption (l/100 km) | 7.5 – 8.5 l/100 km (Combined cycle, typical application) |
| Engine Type | Inline 4-cylinder, DOHC, 16-valve |
| Compression Ratio | 10.4:1 |
| Cylinder Bore (mm) | 90.0 mm |
| Piston Stroke (mm) | 98.0 mm |
| Valvetrain | Dual Overhead Camshaft (DOHC), Chain-driven |
| Valves per Cylinder | 4 |
| Additional Info | Dual VVT-i, Acoustic Control Induction System (ACIS) |
Common Problems & Reliability
The 2AR-FE engine is renowned for its high degree of reliability and robustness, largely owing to Toyota’s conservative engineering and robust component selection. However, like any mechanical system, it is not entirely without potential issues, typically manifesting at higher mileages. One common concern is minor oil consumption, which can become noticeable above 100,000 miles (160,000 km). While generally not severe enough to cause catastrophic failure, it necessitates regular monitoring of oil levels and timely top-offs to prevent damage. This is a characteristic, albeit less pronounced, inherited from its predecessor, the 2AZ-FE.
Another identified weak point is the water pump. The plastic components within the pump can degrade over time, leading to leaks or premature failure. Symptoms often include coolant puddles under the vehicle or an illuminated low coolant warning light. Regular inspection during routine maintenance can help identify and address this issue before it escalates. While less common, some owners report instances of timing chain rattle, usually at very high mileages or if oil change intervals have been severely neglected. The timing chain itself is designed for the life of the engine, but wear on the tensioners or guides can cause noise. The realistic expected service life for a 2AR-FE engine, with diligent maintenance and proper care, often exceeds 250,000 to 300,000 miles (400,000 to 480,000 km) before a major overhaul might be considered.
Maintenance Tips & Service Schedule
Proactive maintenance is key to maximizing the longevity and performance of the 2AR-FE engine. Adherence to manufacturer-recommended service intervals is crucial.
- Engine Oil & Filter: Change every 5,000-7,500 miles (8,000-12,000 km) or every 6 months, whichever comes first. Use a full synthetic motor oil with a viscosity of 0W-20 or 5W-20, conforming to API SN/SP or ILSAC GF-5/GF-6 standards. Regular oil changes are vital for the proper function of the VVT-i system and timing chain components.
- Spark Plugs: Replace iridium-tipped spark plugs every 60,000-90,000 miles (100,000-145,000 km). Use genuine Toyota/Lexus specified plugs to ensure optimal ignition and fuel efficiency.
- Timing Chain: The timing chain is designed to be maintenance-free for the life of the engine under normal operating conditions. There is no specified replacement interval. However, if any unusual noises (e.g., rattling) are detected, inspection by a qualified technician is warranted.
- Coolant: Toyota Super Long Life Coolant (SLLC) is typically used and should be flushed and replaced every 100,000 miles (160,000 km) or 5 years after the initial factory fill, then every 50,000 miles (80,000 km) or 2.5 years thereafter.
- Air Filter: Inspect every 15,000 miles (24,000 km) and replace as needed, or at least every 30,000 miles (48,000 km).
- Drive Belt: Inspect for cracks or wear every 30,000 miles (48,000 km) and replace if necessary.
Conclusion
The Lexus 2AR-FE engine stands out as an exceptionally reliable and well-engineered powerplant, exemplifying Toyota’s reputation for durability. Its combination of proven technology, efficient performance, and robust construction makes it an excellent choice for a used vehicle buyer. With its relatively minor common issues typically appearing at very high mileages and its low overall cost of ownership, the 2AR-FE is considered a safe and dependable engine. Vehicles equipped with this engine, when properly maintained, offer impressive longevity and a high degree of trouble-free operation, making them a wise investment for those seeking a reliable daily driver.
