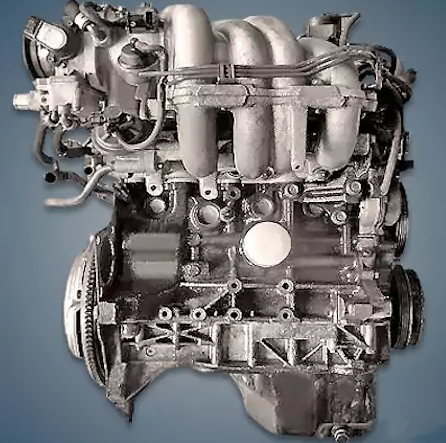

From 1993 to 2009, the company produced the 1.6-liter 16-valve Mazda B6-DE engine, which was used in the Familia, European MX-3 and Xedos 6 models, as well as Kia vehicles under the A6D and S6D index. A carburetor version of this motor with the B6D index was put together between roughly 1985 and 1995.
B1, B3, B3-ME, B5, B5-DE, B5-ME, B6, B6-ME, B6-DE, BP, and BP-ME are all members of the B-engine family.
The engine was mounted on:
- Mazda Familia BH in 1994 – 1998; Familia BJ in 1998 – 2003;
- Mazda MX-3 EC in 1994 – 1998;
- Mazda Xedos 6 CA in 1993 – 1999;
- (as A6D and S6D) Kia Carens 2 (FJ) in 2002 – 2006;
- (as A6D and S6D) Kia Rio 1 (DC) in 2002 – 2005;
- (as A6D and S6D) Kia Sephia 2 (FB) in 2001 – 2003;
- (as A6D and S6D) Kia Shuma 2 (SD) in 2001 – 2004;
- (as A6D and S6D) Kia Spectra 1 (SD) in 2004 – 2011.
Specifications
| Production years | 1993-2009 |
| Displacement, cc | 1597 |
| Fuel system | injector |
| Power output, hp | 105 – 115 |
| Torque output, Nm | 135 – 145 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 83.6 |
| Compression ratio | 9.0 – 9.2 |
| Features | DOHC, VICS |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.2 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Mazda Xedos 6 1995) — city — highway — combined |
10.2 6.1 7.6 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 140.5 |
Disadvantages of the Mazda B6-DE engine
Although this engine is regarded as dependable, it frequently runs out of oil after 150,000 kilometers.
Additionally, hydraulic compensators in this area rapidly fail due to inadequate lubrication.
The oil pump pressure relief valve is another one of the motor’s weak points.
The timing belt is required to change every 60,000 kilometers, but the valves do not bend when it breaks.
The ignition system is typically linked to the power unit’s remaining issues.
