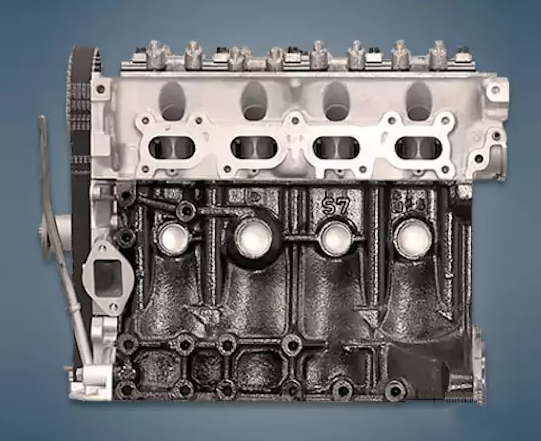

Produced between 1989 and 1994, the Mazda B6-ME or B6-2E 1.6-liter gasoline engine was mounted in the rear of the BG and the first generation MX-3 on a variety of 323 model modifications. Additionally, the US version of the Escort and the third-generation Ford Laser have this unit.
B1, B3, B3-ME, B5, B5-DE, B5-ME, B6, B6-ME, B6-DE, BP, and BP-ME are all members of the B-engine family.
The engine was mounted on:
- Mazda 323 BG in 1989 – 1994;
- Mazda MX-3 EC in 1991 – 1993.
Specifications
| Production years | 1989-1994 |
| Displacement, cc | 1597 |
| Fuel system | injector |
| Power output, hp | 85 – 90 |
| Torque output, Nm | 135 – 140 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 83.6 |
| Compression ratio | 9.0 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.0 |
| Fuel type | petrol |
| Euro standards | EURO 1/2 |
| Fuel consumption, L/100 km (for Mazda 323 1993) — city — highway — combined |
9.9 6.5 8.2 |
| Engine lifespan, km | ~280 000 |
| Weight, kg | 138.3 |
Disadvantages of the Mazda B6-ME engine
Only at high mileage does a structurally straightforward and dependable motor cause concern; ignition system failures are most frequently discussed on specialized forums;
The timing belt resource is about 60,000 km, but when it breaks, the valves typically do not bend; after 150–200 thousand km, hydraulic lifters frequently knock and oil burn starts; idle speeds frequently float here, primarily because of throttle contamination.
