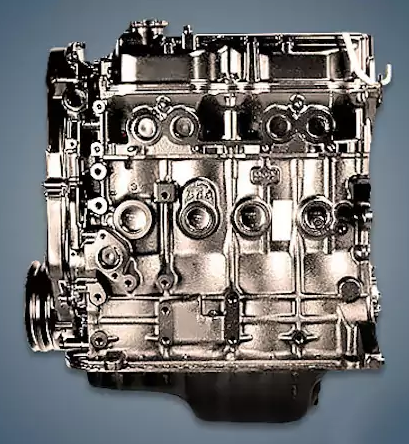

From 1986 to 1993, a Japanese factory assembled the 2.2-liter Mazda F2 gasoline engine in multiple versions simultaneously: with a carburetor, distributed injection, or turbocharging. The B2200 pickup truck had 8-valve engines in addition to the standard 12-valve modification.
F6, FP, FP-DE, F8, FE, FE-DE, FE3N, FS, FS-DE, FS-ZE, and F2 are all members of the F-engine family.
The engine was mounted on:
- Mazda 626 GD in 1987 – 1992;
- Mazda 929 HC in 1986 – 1991;
- Mazda B-series 4 (UF) in 1987 – 1993;
- Mazda Capella GD in 1987 – 1992;
- Mazda MX-6 GD in 1987 – 1992;
- Mazda Luce HC in 1986 – 1991.
Specifications
| Production years | 1986-1993 |
| Displacement, cc | 2184 |
| Fuel system | carburetor (carburetor modifications F2) injector (injector modifications F2-E) injector (turbocharged modifications F2T) |
| Power output, hp | 85 – 115 (carburetor modifications F2) 110 – 135 (injector modifications F2-E) 145 (turbocharged modifications F2T) |
| Torque output, Nm | 160 – 175 (carburetor modifications F2) 175 – 190 (injector modifications F2-E) 260 (turbocharged modifications F2T) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v / 12v (carburetor modifications F2) aluminum 12v (injector modifications F2-E) aluminum 12v (turbocharged modifications F2T) |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 94 |
| Compression ratio | 8.6 (carburetor modifications F2) 9.2 – 9.6 (injector modifications F2-E) 7.8 (turbocharged modifications F2T) |
| Features | SOHC (carburetor modifications F2) SOHC (injector modifications F2-E) SOHC, intercooler (turbocharged modifications F2T) |
| Hydraulic lifters | only on 12v cylinder head (carburetor modifications F2) yes (injector modifications F2-E) yes (turbocharged modifications F2T) |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no (carburetor modifications F2) no (injector modifications F2-E) IHI RHB5 VJ11 (turbocharged modifications F2T) |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | petrol |
| Euro standards | EURO 0 (carburetor modifications F2) EURO 1/2 (injector modifications F2-E) EURO 1/2 (turbocharged modifications F2T) |
| Fuel consumption, L/100 km (for Mazda 929 1990) — city — highway — combined |
13.8 8.7 10.1 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 177.1 |
Disadvantages of the Mazda F2 2.2l engine
Motors with carburetors are challenging to tune, so you’ll need a good specialist;
Owners only complain about ignition system problems with injection versions, which are more dependable;
Due to piston rings, an oil burner is frequently discovered at high mileage;
Although the timing belt resource is roughly 60,000 kilometers long, the valves do not bend here when it breaks;
Low-quality oil will cause the hydraulic lifters to malfunction and start knocking.
