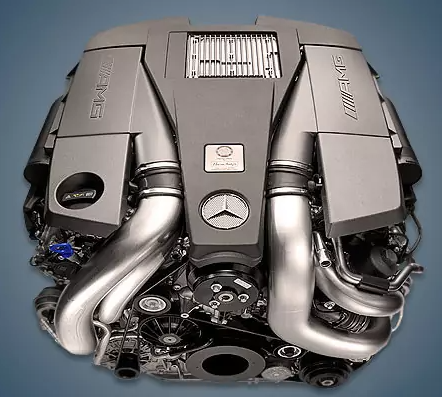

From 2010 to 2019, AMG modified the CLS-Class, E-Class, ML-Class, GL-Class, and S-Class models with the 5.5-liter bi-turbo Mercedes M157 engine, which was manufactured in Germany. The M152 index and cylinder deactivation system are features of an atmospheric version of the engine.
M113 E43, M113 E50, M113 E55, M119 E42, M119 E50, M119 E60, M156, M157, M177, M273, and M278 are all members of the V8-family.
Specifications
| Production years | 2010-2019 |
| Displacement, cc | 5461 |
| Fuel system | direct injection CGI |
| Power output, hp | 525 – 585 |
| Torque output, Nm | 700 – 900 |
| Cylinder block | aluminum V8 |
| Block head | aluminum 32v |
| Cylinder bore, mm | 98 |
| Piston stroke, mm | 90.5 |
| Compression ratio | 10.0 |
| Features | Bi-Turbo |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on all shafts |
| Turbocharging | two Garrett MGT2260MSL |
| Recommended engine oil | 0W-40 |
| Engine oil capacity, liter | 8.5 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Mercedes-Benz GL63 AMG 2014) — city — highway — combined |
15.8 10.3 12.3 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 220 |
The engine was installed on:
- Mercedes CL-Class C216 in 2010 – 2014; CL-Class C217 in 2014 – 2017;
- Mercedes CLS-Class W218 in 2011 – 2018;
- Mercedes E-Class W212 in 2011 – 2016;
- Mercedes G-Class W463 in 2012 – 2018;
- Mercedes GL-Class X166 in 2012 – 2019;
- Mercedes GLE-Class W166 in 2015 – 2018;
- Mercedes ML-Class W166 in 2012 – 2015;
- Mercedes S-Class W221 in 2010 – 2013; S-Class W222 in 2013 – 2017;
- Mercedes SL-Class R231 in 2012 – 2018.
Disadvantages of the M157 DE55 engine
The resource of this unit is dependent on the level of forcing and is frequently adjusted.
It is prone to scuffing, just like nearly all motors with an aluminum coating.
Oil pump gear wear is frequently the cause of this issue as well.
A short-lived timing chain, particularly tensioners, is a major source of trouble here.
The engine’s delicate piezoceramic nozzles are one of its weak points.
