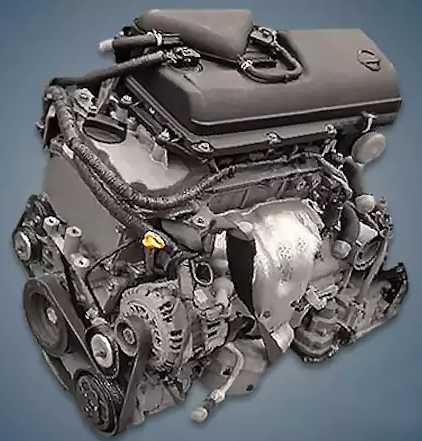

The popular compact cars Micra and March, as well as the useful Wingroad and AD station wagons, are equipped with the 1.2-liter Nissan CR12DE engine, also known as CR12, which has been manufactured in Japan since 2002. There are two versions of this power unit available: one with and one without a phase regulator at the intake.
The CR10DE and CR14DE internal combustion engines are also part of the CR family.
The engine was mounted on:
- Nissan Micra 3 (K12) in 2002 – 2010;
- Nissan March 3 (K12) in 2002 – 2010;
- Nissan Wingroad Y12 in 2005 – 2017;
- Nissan AD Van Y12 in 2006 – …
Specifications
| Production years | 2002-… |
| Displacement, cc | 1240 |
| Fuel system | distributed injection |
| Power output, hp | 65 (version without a phase regulator) 80 – 90 (version with a phase regulator) |
| Torque output, Nm | 110 (version without a phase regulator) 121 (version with a phase regulator) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 71 |
| Piston stroke, mm | 78.3 |
| Compression ratio | 9.8 (version without a phase regulator) 9.8 – 9.9 (version with a phase regulator) |
| Features | EGR |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | no (version without a phase regulator) at the inlet (version with a phase regulator) |
| Turbocharging | no |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 3.4 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Nissan Wingroad 2007) — city — highway — combined |
8.3 6.3 6.9 |
| Engine lifespan, km | ~200 000 |
Disadvantages of the CR12DE engine
Stretching the timing chain caused issues in the early years, but eventually its resources increased;
Numerous instances of cylinder head gasket failure were also noted in the early stages;
This engine needs to have its nozzles cleaned on a regular basis because it dislikes bad fuel;
numerous grievances regarding the car’s inability to operate in cold weather;
However, the progressive oil burner after 150,000 kilometers is the primary drawback.
