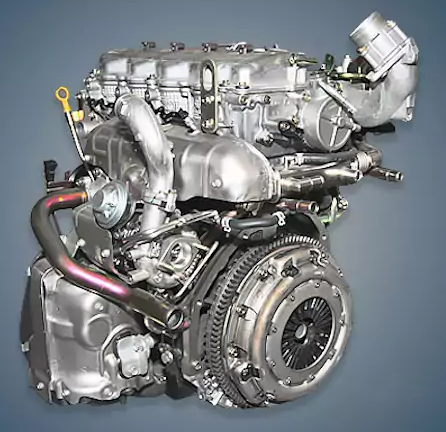

From 2001 to 2007, a number of well-known concern models, including the Almera Tino, Primera, and X-Trail, were equipped with the 2.2-liter Nissan YD22DDTi diesel engine, also known as YD22. There was a YD22ETi modification with a VP44 electronic high pressure fuel pump in addition to the Common Rail version.
Internal combustion engines YD22DD/YD22DDT and YD25DDTi are also part of the YD series.
The engine was mounted on:
- Nissan Almera 2 (N16) in 2003 – 2006;
- Nissan Almera Tino 1 (V10) in 2003 – 2006;
- Nissan Primera 3 (P12) in 2001 – 2007;
- Nissan X-Trail 1 (T30) in 2003 – 2007.
Specifications
| Production years | 2001-2007 |
| Displacement, cc | 2184 |
| Fuel system | Common Rail |
| Power output, hp | 114 (modification Mid Power with Common Rail DENSO HP2) 130 – 140 (modification High Power with Common Rail DENSO HP3) |
| Torque output, Nm | 247 (Mid Power) 300 – 320 (High Power) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 94 |
| Compression ratio | 16.7 (Mid Power) 16.7 – 17.0 (High Power) |
| Features | intercooler, EGR |
| Hydraulic lifters | no |
| Timing drive | two chains |
| Phase regulator | no |
| Turbocharging | Garrett GT1549S (Mid Power) Garrett GT1849V (High Power) |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.3 |
| Fuel type | diesel |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Nissan Primera 2006) — city — highway — combined |
8.1 5.0 6.1 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 210 |
Disadvantages of the YD22DDTi engine
Although the Denso fuel system is reliable, repairs are expensive;
Owners frequently report oil leaks from the intercooler on the profile forum;
Fragile glow plugs are extremely difficult to access and break off when replaced;
The EGR valve needs to be cleaned on a regular basis because soot quickly grows there.
There is a significant chance of the engine’s double-row timing chain being stretched after 200,000 kilometers.
