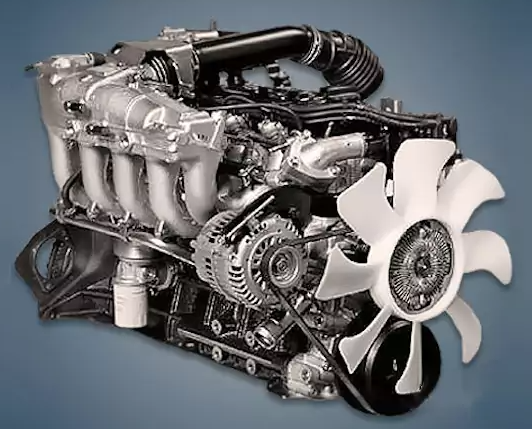

From 1987 to 1997, a Japanese company produced the 4.2-liter Nissan TB42 engine, which was only used in the Y60 body and under the hood of the iconic Patrol SUV. When the engine was first introduced, it had a point-type distributor and a two-barrel carburetor. The TB42E with electronic ignition and fuel injection first appeared in 1992. The TB42 was now re-labeled as TB42S.
The TB45 and TB48DE internal combustion engines are also members of the TB family.
The engine was mounted on:
- Nissan Patrol 4 (Y60) in 1987 – 1998.
Specifications
| Production years | 1987-1997 |
| Displacement, cc | 4169 |
| Fuel system | carburetor or EFI |
| Power output, hp | 170 – 175 |
| Torque output, Nm | 320 – 325 |
| Cylinder block | cast iron R6 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 96 |
| Piston stroke, mm | 96 |
| Compression ratio | 8.3 – 8.5 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 15W-40 |
| Engine oil capacity, liter | 8.2 |
| Fuel type | petrol |
| Euro standards | EURO 1/2 |
| Fuel consumption, L/100 km (for Nissan Patrol 1995) — city — highway — combined |
19.7 11.8 16.4 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 270 |
Disadvantages of the TB42 engine
Although the motor is a huge resource and very reliable, it uses a lot of fuel;
Ignition issues are common, but they can be easily and affordably resolved;
Unadjusted valves are frequently found to be the source of knocks under the hood;
The timing chain may stretch and need to be replaced after 250 thousand kilometers;
The engine dislikes overheating; if it does, compression may vanish or an oil burn may start.
