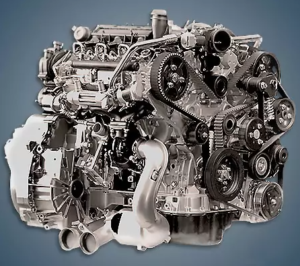

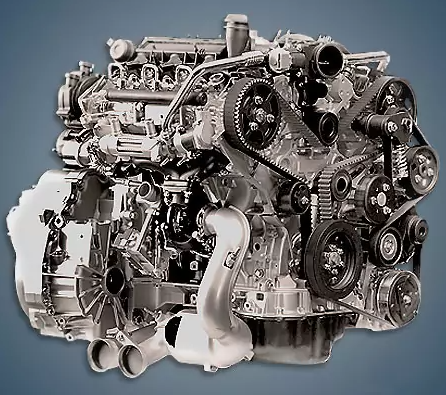

From 2004 to 2010, a number of well-known concern models, such as the 407 or 607, were equipped with the 2.7-liter Peugeot DT17TED4 or UHZ diesel engine, which was developed in collaboration with Ford. A 190 horsepower DT17 with a single turbine was modified for use in Ford and Land Rover vehicles.
DT17TED4 and DT20C are diesels in the DT family.
The engine was mounted on:
- Peugeot 407 I (D2) in 2004 – 2010;
- Peugeot 607 I (Z8/Z9) in 2005 – 2010;
- Citroen C5 II (X7) in 2008 – 2009;
- Citroen C6 I (X6) in 2005 – 2009.
Specifications
| Production years | 2004-2010 |
| Displacement, cc | 2720 |
| Fuel system | Common Rail |
| Power output, hp | 204 |
| Torque output, Nm | 440 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 88 |
| Compression ratio | 17.3 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt and two chains |
| Phase regulator | no |
| Turbocharging | double |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.75 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Peugeot 607 2008) — city — highway — combined |
11.6 6.6 8.4 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 230 |
Disadvantages of the DT17TED4 engine
The thermostat housing frequently ruptures at the seam, causing the engine to overheat right away;
Fuel quality is required by the CR Siemens fuel system’s piezo injectors;
The chains between the camshafts are frequently stretched after 150,000 kilometers of operation;
The system’s lubricating pressure decreases as the oil pump gradually runs out of fuel;
Oil starvation soon causes the crankshaft to break and the liners to crank.
