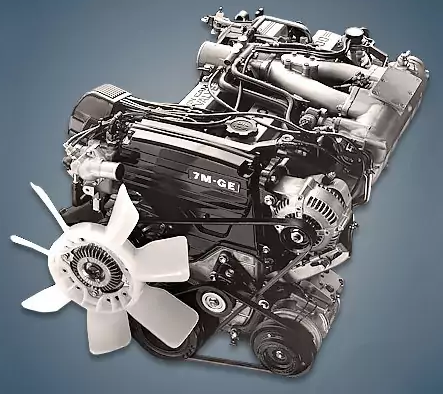

From 1986 to 1992, the company produced the 3.0-liter 24-valve Toyota 7M-GE engine, which was fitted to popular Japanese vehicles like the Supra, Chaser, Crown, and Mark II. A unique configuration of valves at a 50-degree angle set this power unit apart.
The 5M-EU, 5M-GE, and 7M-GTE engines are also part of the M family.
The engine was mounted on:
- Toyota Chaser 4 (X80) in 1989 – 1992;
- Toyota Crown 8 (S130) in 1987 – 1991;
- Toyota Mark II 6 (X80) in 1988 – 1992;
- Toyota Supra 3 (A70) in 1986 – 1992.
Specifications
| Production years | 1986-1992 |
| Displacement, cc | 2954 |
| Fuel system | injector |
| Power output, hp | 190 – 205 |
| Torque output, Nm | 250 – 265 |
| Cylinder block | cast iron R6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91 |
| Compression ratio | 9.1 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.4 |
| Fuel type | petrol |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Toyota Mark II 1990) — city — highway — combined |
12.1 8.2 10.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 185 |
Disadvantages of the Toyota 7M-GE engine
A cylinder head gasket failure near the sixth cylinder is the most well-known engine issue;
Owners frequently overstretch and break the cylinder head bolts;
Additionally, the ignition system frequently fails here, and the idle valve sticks;
One of the engine’s weaknesses is the oil pump, which performs poorly;
There are no hydraulic lifters, and the valves must be adjusted every 100,000 kilometers.
