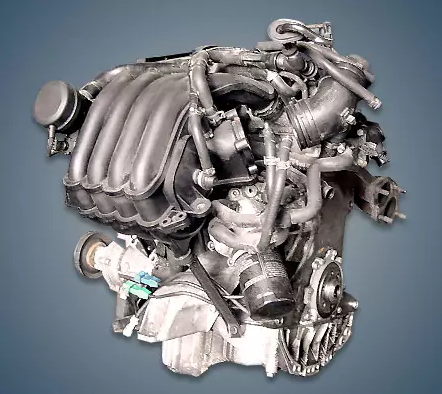

Only the fifth generation of the Passat model and its equivalent, the Audi A4 B5, were equipped with the 1.8-liter 20-valve Volkswagen 1.8 ARG engine, which was manufactured between 1997 and 2001. This motor’s longitudinal arrangement beneath the hood set it apart from other members of the family.
RP, AAM, ABS, ADZ, PF, ADR, ARG, AEB, and ANB are all part of the EA827 1.8l series.
Specifications
| Production years | 1997-2001 |
| Displacement, cc | 1781 |
| Fuel system | injector |
| Power output, hp | 125 |
| Torque output, Nm | 168 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 86.4 |
| Compression ratio | 10.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain & belt |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for VW Passat B5 1999) — city — highway — combined |
12.2 6.4 8.5 |
| Engine lifespan, km | ~320 000 |
| Weight, kg | 150 (with attachments) |
The engine was installed on:
- Audi A4 B5 (8D) in 1997 – 2001;
- Volkswagen Passat B5 (3B) in 1997 – 2000.
Disadvantages of the VW ARG engine
This motor is very dependable and frequently only has issues with the timing chain tensioner;
Additionally, the intake manifold damper regulator occasionally malfunctions;
Usually, a dirty throttle or injectors are the cause of floating engine speeds.
The air flow meter and antifreeze temperature sensor have limited resources;
Frequent blockages in the crankcase ventilation cause thrust failures, among other issues.
