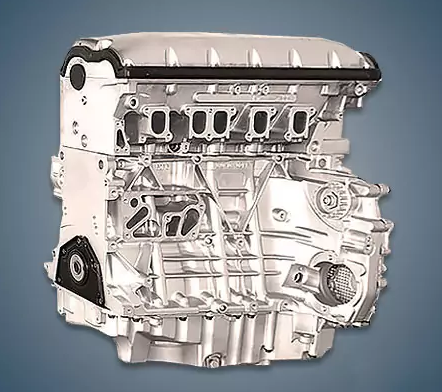

From 2003 to 2009, only Transporter, Caravelle, or Multivan minibuses with T5 bodies were equipped with the 2.5-liter Volkswagen Axe 2.5 TDI diesel engine. This unit has been modified for EURO 4 with a BPC index and particulate filter.
AAB, AJT, ACV, AXG, BAC, BPE, AXD, AXE, AJS, and AYH are also included in the EA153 series.
Specifications
| Production years | 2003-2009 |
| Displacement, cc | 2460 |
| Fuel system | unit-injectors |
| Power output, hp | 174 |
| Torque output, Nm | 400 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 10v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 18.0 |
| Features | SOHC, intercooler |
| Hydraulic lifters | yes |
| Timing drive | gears |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 7.4 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for VW Multivan 2005) — city — highway — combined |
10.8 6.4 8.0 |
| Engine lifespan, km | ~350 000 |
The engine was installed on:
- Volkswagen Caravelle T5 (7H) in 2003 – 2009;
- Volkswagen Multivan T5 (7H) in 2003 – 2009;
- Volkswagen Transporter T5 (7H) in 2003 – 2009.
Disadvantages of the VW AXE engine
Leaks from the tandem pump and nozzle seals are the primary issues;
Another sleeveless aluminum block is prone to scuffing and is terrified of bad diesel fuel;
This is where the oil system heat exchanger frequently leaks, allowing lubricant to get into the antifreeze;
Rockers or camshaft cams may already be worn out after 200,000 kilometers of operation;
Although there are still many flaws in this unit, they are common to contemporary diesel engines.
