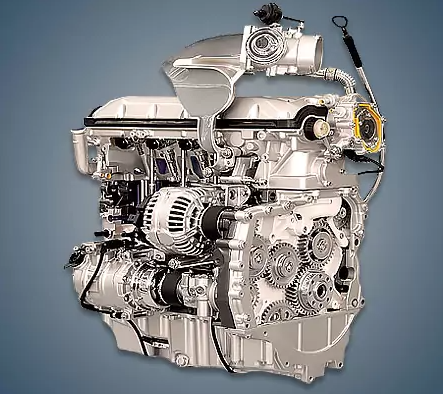

Before being redesigned, the first generation of the Touareg GP SUV had a 2.5-liter Volkswagen BAC 2.5 TDI diesel engine, which was manufactured between 2003 and 2006. The shedding of the cylinder walls’ coating has made this diesel engine notorious.
AAB, AJT, ACV, AXG, BAC, BPE, AXD, AXE, AJS, and AYH are also included in the EA153 series.
Specifications
| Production years | 2003-2006 |
| Displacement, cc | 2460 |
| Fuel system | unit-injectors |
| Power output, hp | 174 |
| Torque output, Nm | 400 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 10v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 18.0 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | gears |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.9 |
| Fuel type | diesel |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for VW Touareg 2005) — city — highway — combined |
12.4 7.4 9.2 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Volkswagen Touareg 1 (7L) in 2003 – 2006.
Disadvantages of the VW BAC engine
This aluminum block lacks liners, and the cylinder walls’ coating is prone to shedding;
By 150,000 km, the tandem pump and unit-injectors frequently leak through the seals;
Rockers and camshaft cams frequently wear out after 200,000 kilometers of operation;
Additionally, the intake manifold is unreliable because it just cracks; additionally, a leak in the pump and heat exchanger may cause oil to mix with antifreeze.
