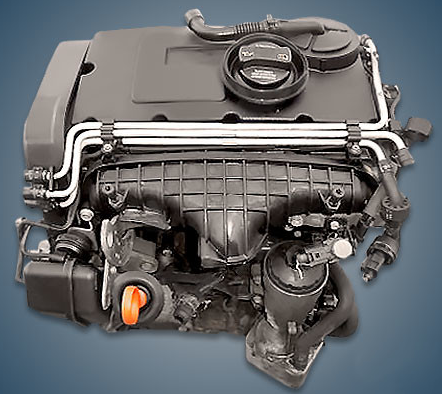

From 2005 to 2008, the company produced the 2.0-liter Volkswagen BKP 2.0 TDI engine, which was mounted in the B6 body of a fairly popular Passat model. Among comparable diesel engines with piezoelectric unit injectors, this one stood out.
BKD, BKP, BMM, BMP, BMR, BPW, BRE, and BRT are also included in the EA188-2.0 series.
Specifications
| Production years | 2005-2008 |
| Displacement, cc | 1968 |
| Fuel system | unit injectors |
| Power output, hp | 140 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 18.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for VW Passat 2006) — city — highway — combined |
6.4 4.0 4.9 |
| Engine lifespan, km | ~275 000 |
| Weight, kg | 180 |
The engine was installed on:
- Volkswagen Passat B6 (3C) in 2005 – 2008.
Disadvantages of the VW BKP engine
Piezoelectric unit injectors are linked to numerous motor failures; additionally, this engine failed to pass the known issue with the oil pump’s hex;
Additionally, this power unit can use up to 1 liter of oil every 1000 kilometers; the turbine’s geometry frequently wedges and thrust dips due to pollution; at high mileage, the particulate filter and the EGR valve are frequently totally clogged.
