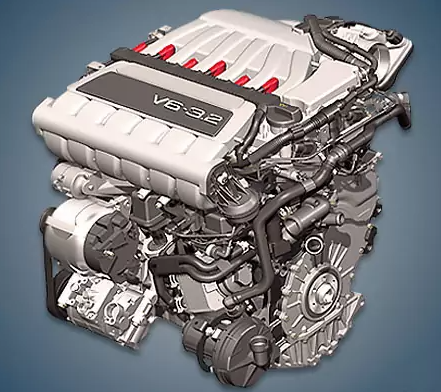

The Volkswagen BUB 3.2 VR6 3.2-liter injection engine was manufactured between 2005 and 2010 and was fitted to the Audi A3 or TT coupe, as well as charged versions of the R32 Golf and Eos models. Some people mistake such a motor for an EA390 family VR6 FSI unit of comparable size.
AAA, AQP, ABV, and BUB are all part of the EA360 series.
Specifications
| Production years | 2005-2010 |
| Displacement, cc | 3189 |
| Fuel system | Motronic ME7.1.1 |
| Power output, hp | 250 |
| Torque output, Nm | 320 |
| Cylinder block | cast iron VR6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 95.9 |
| Compression ratio | 10.85 |
| Features | VSR |
| Hydraulic lifters | yes |
| Timing drive | 2 chains |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for VW Golf R32 2006) — city — highway — combined |
14.9 8.3 10.7 |
| Engine lifespan, km | ~275 000 |
The engine was installed on:
- Volkswagen Eos 1 (1F) in 2005 – 2008;
- Volkswagen Golf 5 (1K) in 2005 – 2008;
- Audi A3 2 (8P) in 2005 – 2009;
- Audi TT 2 (8J) in 2006 – 2010.
Disadvantages of the VW BUB engine
First, the fuel consumption of the power units in this series is excessive; second, even though the oil consumption is lower than that of its predecessors, there are still enough complaints;
Timing chain replacement is challenging and costly due to its extremely limited resource;
One ignition coil failure is frequently the cause of the engine’s unstable operation;
The complex two-pump cooling system is not renowned for its dependability.
