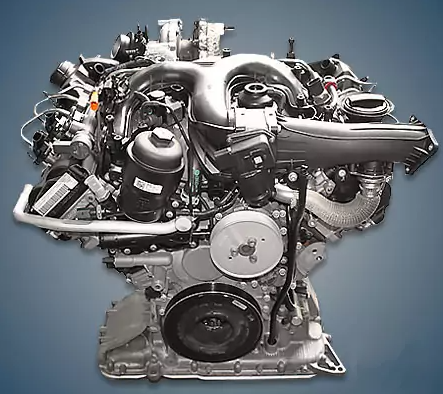

From 2010 to 2018, the company produced the 3.0-liter Volkswagen CJMA 3.0 TDI engine, which was fitted to both the European Q7 and the base version of the Touareg model. According to the CRCA index, this engine is basically a diesel engine with 204 horsepower.
CJMA, CDUC, CDUD, CRCA, CRTC, CVMD, and DCPC are also included in the EA897 series.
Specifications
| Production years | 2010-2018 |
| Displacement, cc | 2967 |
| Fuel system | Common Rail |
| Power output, hp | 204 |
| Torque output, Nm | 450 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91.4 |
| Compression ratio | 16.8 |
| Features | 2 x DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | GT 2256 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.0 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Volkswagen Touareg 2015) — city — highway — combined |
8.5 6.7 7.4 |
| Engine lifespan, km | ~360 000 |
| Weight, kg | 195 |
The engine was installed on:
- Audi Q7 1 (4L) in 2010 – 2015;
- Volkswagen Touareg 2 (7P) in 2010 – 2018.
Disadvantages of the VW CJMA engine
This engine is thought to be very dependable, and its owners are rarely concerned about it;
The majority of motor issues are related to the unpredictability of the CR system with piezo injectors;
Lubricant or antifreeze leaks rank second in terms of the quantity of complaints;
The EGR valve and diesel particulate filter are frequently totally clogged closer to 250,000 kilometers;
They may already stretch out around the same run, necessitating a timing chain replacement.
