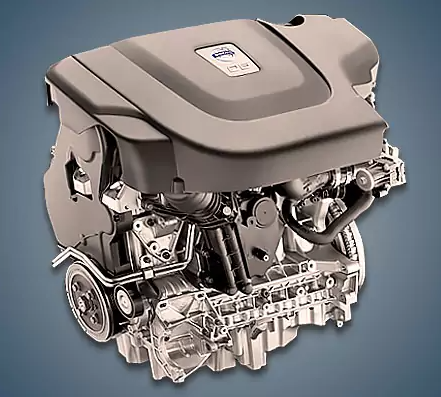

From 2010 to 2016, the company produced the 2.4-liter Volvo D5244T15 diesel engine, which was fitted to the top models of the S60, S80, V60, V70, XC60, and XC70. This diesel engine belonged to the third generation D5, along with the T10, T11, T14, T16, T17, T21, and T22 engines.
The D5204T, D5244T, and D5244T4 are diesel modular engines.
The engine was mounted on:
- Volvo S60 II (134) in 2010 – 2014;
- Volvo S80 II (124) in 2011 – 2016;
- Volvo V60 I (155) in 2012 – 2015;
- Volvo V70 III (135) in 2012 – 2016;
- Volvo XC60 I (156) in 2012 – 2015;
- Volvo XC70 III (136) in 2012 – 2016.
Specifications
| Production years | 2010-2016 |
| Displacement, cc | 2400 |
| Fuel system | Common Rail |
| Power output, hp | 215 |
| Torque output, Nm | 440 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 93.15 |
| Compression ratio | 16.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Twin-Turbo |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 5.2 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Volvo XC60 2015) — city — highway — combined |
8.5 5.3 6.4 |
| Engine lifespan, km | ~330 000 |
Disadvantages of the D5244T15 engine
First and foremost, you must keep an eye on the timing belt’s condition and replace it every 60,000 kilometers; hydraulic lifters dislike conserving oil and can already knock by 100,000 kilometers; the alternator belt serves even less and falls under the timing belt if it breaks;
Even here, the throttle and EGR valves quickly become clogged and dirty; after 200,000 kilometers, liners frequently burst and antifreeze combines with oil.
