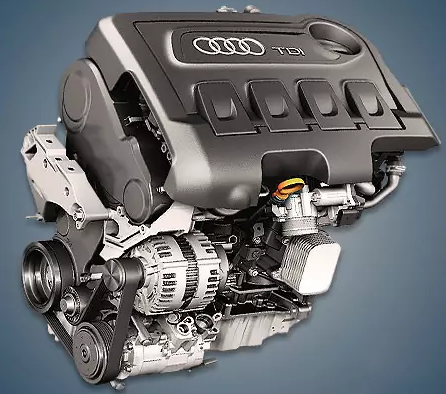

From 2009 to 2015, models like the Golf, Passat, Sharan, Seat Alhambra, and Skoda Superb were equipped with the 2.0-liter CFGB or Audi TT 2.0 TDi diesel engine. The unit is an upgraded CBBB diesel that is part of the second generation EA189.
The EA189 series also includes: CAYC, CAAC, CAGA, CAHA, CBAB, CFCA, CFGB, CLCA, CLJA, CKTB, CFHC, CKUB.
Specifications
| Production years | 2009-2015 |
| Displacement, cc | 1968 |
| Fuel system | Common Rail |
| Power output, hp | 170 |
| Torque output, Nm | 350 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 16.5 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTC1549VZ |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Audi TT 2012) — city — highway — combined |
7.0 4.3 5.3 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 165 |
The engine was installed on:
- Audi A3 2 (8P) in 2009 – 2012;
- Audi TT 2 (8J) in 2009 – 2014;
- Seat Alhambra 2 (7N) in 2010 – 2012;
- Skoda Superb 2 (3T) in 2009 – 2015;
- Volkswagen Golf 6 (5K) in 2009 – 2013;
- Volkswagen Passat B7 (36) in 2010 – 2015;
- Volkswagen Passat CC (35) in 2009 – 2015;
- Volkswagen Sharan 2 (7N) in 2010 – 2015.
Disadvantages of the Audi CFGB engine
The electromagnetic injector Bosch fuel system has a long lifespan;
Regular leaks and an unreliable oil separator are the main issues;
Keep a close eye on the timing belt’s condition because when it breaks, the valves bend. The remaining issues are related to diesel particulate filter or EGR valve contamination.
