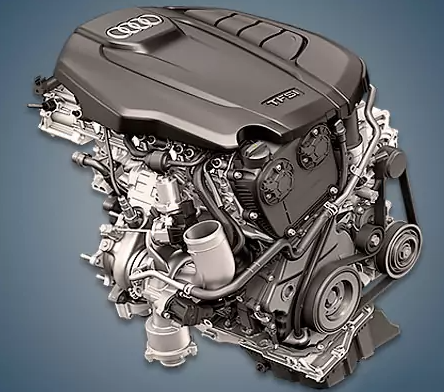

From 2012 to 2016, a German company assembled the 2.0-liter Audi CNCD 2.0 TFSI engine, which was installed on the Q5 all-wheel drive crossover as well as passenger models of the A4 and A5 types. Such a power unit gained five more horsepower and a new CNCE index following the upgrade.
The EA888 gen3 series includes: CJSA, CJSB, CJEB, CHHA, CHHB, CXDA, CNCD, CJXC.
Specifications
| Production years | 2012-2016 |
| Displacement, cc | 1984 |
| Fuel system | FSI + MPI |
| Power output, hp | 225 |
| Torque output, Nm | 350 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 92.8 |
| Compression ratio | 9.6 |
| Features | DOHC, AVS |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | IHI IS20 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.7 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Audi Q5 2014) — city — highway — combined |
9.3 6.4 7.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 140 |
The engine was installed on:
- Audi A4 B8 (8K) in 2013 – 2015;
- Audi A5 1 (8T) in 2013 – 2016;
- Audi Q5 1 (8R) in 2012 – 2015.
Disadvantages of the Audi CNCD engine
A decrease in the system’s oil pressure is linked to the majority of this motor’s malfunctions;
Oil pump failures or clogged bearing strainers are typically the cause;
There have been instances of detonation-related piston cracking; replacing them with forged ones is helpful;
Here, too, the phase control system fails as the timing chain is swiftly removed;
Numerous issues with the cooling system include: a pump with a thermostat or valve N488 is leaking; adjusting the boost pressure actuator usually helps with engine thrust failures.
