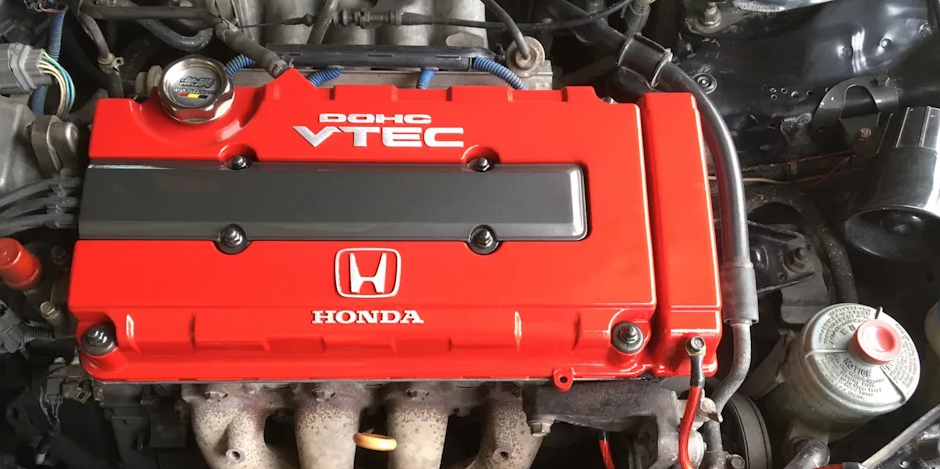

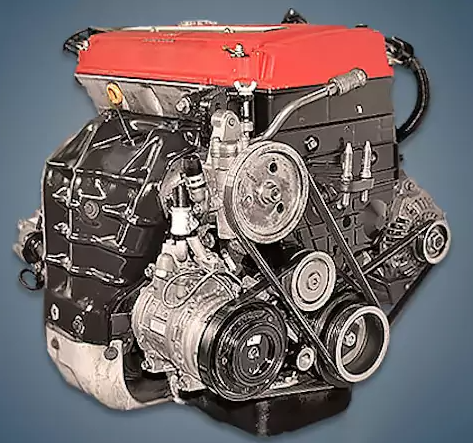

Only the Civic Type R sports model and the EK9 body were equipped with the 1.6-liter Honda B16B engine, which was manufactured in Japan between 1997 and 2000. With 110 horsepower per liter, the B16B motor had the highest boost rate available at the time.
Internal combustion engines (B16A, B18B, B18C, and B20B) are also part of the B-series.
The engine was mounted on:
- Honda Civic 6 (EJ) in 1997 – 2000.
Specifications
| Production years | 1997-2000 |
| Displacement, cc | 1595 |
| Fuel system | injector |
| Power output, hp | 185 |
| Torque output, Nm | 160 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 77.4 |
| Compression ratio | 10.8 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | VTEC |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Honda Civic Type R 1999) — city — highway — combined |
9.5 6.4 7.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 128 |
Disadvantages of the Honda B16B engine
This engine has no weak points despite the level of forcing;
periodically starts to breach the cylinder head gasket after 150–200 thousand kilometers;
There are no hydraulic lifters here, and valve adjustment is necessary every 40,000 kilometers. Keep an eye on the timing belt’s condition; its resource is 90,000 kilometers, and the valve bends with a break.
Honda B16A B16B Engine Repair Parts List
| Full name of the part | Part code |
| Piston without rings Honda B16A2 d81.0+0.50 (13010-P30-G00) Teikin (Piston with pin, without piston rings) | 38155 0.50 |
| Inlet valve Honda B16A 5.5x33x102.3 (14711-PR3-000) Rocky | HMA1450 |
| Exhaust valve Honda B16A/B17A/B18/D15B/D16Y/D16Z 5.5x28x102.5 (14721-PR3-000) Rocky | HMB1450 |
| Timing belt Honda Civic, CRX | CT 794 |
| Tension roller | 57400 |
| Timing drive repair kit | CT794K1 |
| Complete set of Honda gaskets B16A DOHC 1989 (06110-P2T-030) Eristic | EF6162 |
| Upper gasket set | 02-53335-01 |
| Upper Gasket Set Honda B16A1 DOHC 1991 (061A1-PR3-020) Eristic | EH6161 |
| Lower gasket set | EV050 |
| Head gasket Honda B16A DOHC 1989 (12251-PR3-004) Eristic | EG616 |
| Head gasket | 61-53335-00 |
| Valve cover gasket | 15-53546-01 |
| Intake manifold gasket | 71-53543-00 |
| Exhaust manifold gasket | 71-53544-00 |
| Water pump | 50 005 084 |
| Water pump | 50005094 |
| Lambda probe | 7.02604.01.0 |
| Universal electric fuel pump 12V 0.32 Pierburg (for carburetor machines – as fuel type) | 7.21440.51.0 |
| Basic liners | MS-2215GP STD |
| Basic liners Honda B16A Taiho | M461H-STD |
| Connecting rod bushings Honda B16A Taiho | R462H-STD |
| Connecting rod bushings | CB-2215GP STD |
| Semi-rings persistent | TW-2215A STD |
| Semi-rings persistent Honda B16A Taiho (change to T468A) | T461A-STD |
| Semi-rings persistent Honda L13A/L15A/LDA (13331-PR3-004/3) Taiho (= T461A) | T468A-STD |
| Oil filter h=103.0 Honda KS Original /10 | 50 013 146 |
| Fuel filter Honda Accord 1.8i-2.2i 16V, Civic 1.5i-1.8i 16V KS | 50 013 824 |
| Fuel filter Honda Accord 2.0i-2.3i 16V, Ford Mondeo 1.8 TD KS | 50 013 828 |
| Air filter | 50013818 |
| Cabin filter Honda Civic/Rover 225.0×200.0×30.0 KS (with activated carbon) | 50013958 |
| V-ribbed belt | 4 PK 875 |
| V-belt 10×838 Contitech | AVX10 X 838 |
| Cabin ventilation filter | 50 013 898 |
