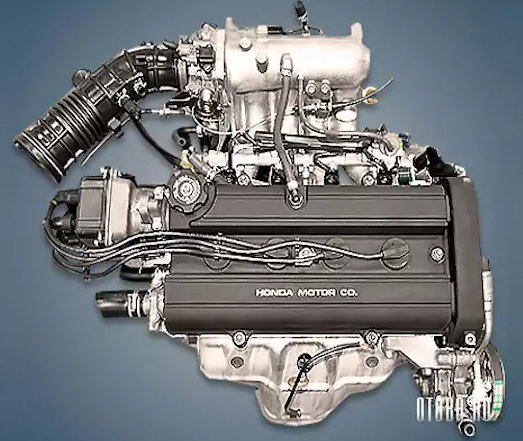

From 1992 until 2000, the 1.8-liter Honda B18B gasoline engine was manufactured in Japan and fitted to a number of the company’s well-known models, most notably the Civic and Integra. There are four variations of the B18B motor, and they differ slightly from one another.
Internal combustion engines (B16A, B16B, B18C, and B20B) are also part of the B-series.
The engine was mounted on:
- Honda Civic 5 (EG) in 1992 – 1995;
- Honda Civic 6 (EJ) in 1995 – 2000;
- Honda Domani 1 (MA) in 1992 – 1996;
- Honda Integra 3 (DB) in 1993 – 2001;
- Honda Orthia 1 (EL) in 1996 – 1999.
Specifications (B18B1, B18B2, B18B3 and B18B4)
| Production years | 1992-2000 |
| Displacement, cc | 1834 |
| Fuel system | injector |
| Power output, hp | 130 – 145 |
| Torque output, Nm | 165 – 175 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 89 |
| Compression ratio | 9.2 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Honda Civic 1994) — city — highway — combined |
9.5 6.4 7.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 125 |
Disadvantages of the Honda B18B engine
This line of motors has almost no distinguishing flaws and is incredibly dependable;
In contrast, only a water pump and a thermostat have limited resources;
The possibility of the cylinder head gasket suddenly penetrating increases after 200,000 kilometers of operation;
The valves may bend here if the timing belt, which is intended to last 90,000 kilometers, breaks;
Since there are no hydraulic lifters, valve adjustment is necessary every 40,000 kilometers.
Honda B18 engine modifications
For the North American market, B18A1 is the standard version without VTEC. 9.2 compression ratio, 132 horsepower at 6000 rpm, and 164 Nm of torque at 5000 rpm. installed on the Acura Integra. The B18A1 engine produced 142 horsepower at 6500 rpm and 178 Nm of torque at 6100 rpm for Japan. The Honda Integra has the JDM version.
B18B1 improved B18A1 by reflashing the control unit, changing the angle of the fuel injectors, and replacing the air filter. The engine produces 142 horsepower at 6300 rpm and 172 Nm of torque at 5200 rpm. installed on Orthia, Domani, and Integra.
For Australia, B18B2–B18B1.
B18B3: Middle Eastern and South African civic engines. 130 horsepower at 6000 rpm and 167 Nm of torque at 5000 rpm.
B18B4: Middle Eastern and South African civic engines. 140 horsepower at 6200 rpm and 171 Nm of torque at 4900 rpm.
B18 Engine Repair Parts List
| Full name of the part | Part code |
| Inlet valve Honda B16A 5.5x33x102.3 (14711-PR3-000) Rocky | HMA1450 |
| Exhaust valve Honda B16A/B17A/B18/D15B/D16Y/D16Z 5.5x28x102.5 (14721-PR3-000) Rocky | HMB1450 |
| Full set of gaskets | GS110 |
| Upper gasket set | DS110 |
| Lower gasket set | ES110 |
| Head gasket Honda B20A-5 DOHC 1988 (12251-PK1-661) Eristic | EG617 |
| Pallet gasket | JJ390 |
| Valve cover gasket | JN769 |
| Gasket, intake manifold | JC895 |
| Gasket, exhaust pipe | 70-52303-00 |
| Oil scraper cap Honda Payen | PA528 |
| Valve stem seals | PA529 |
| Stuffing box | NJ311 |
| Stuffing box | 81-53224-00 |
| Stuffing box | 81-53323-00 |
| Universal electric fuel pump 12V 0.32 Pierburg | 7.21440.51.0 |
| Basic liners Honda B16A Taiho | M461H-STD |
| Basic liners Honda B18/B20 Taiho | M458H-STD |
| Semi-rings persistent Honda B16A Taiho | T461A-STD |
| Semi-rings persistent Honda B20A Taiho | T458A-STD |
| Semi-rings persistent Honda L13A/L15A/LDA (13331-PR3-004/3) Taiho | T468A-STD |
