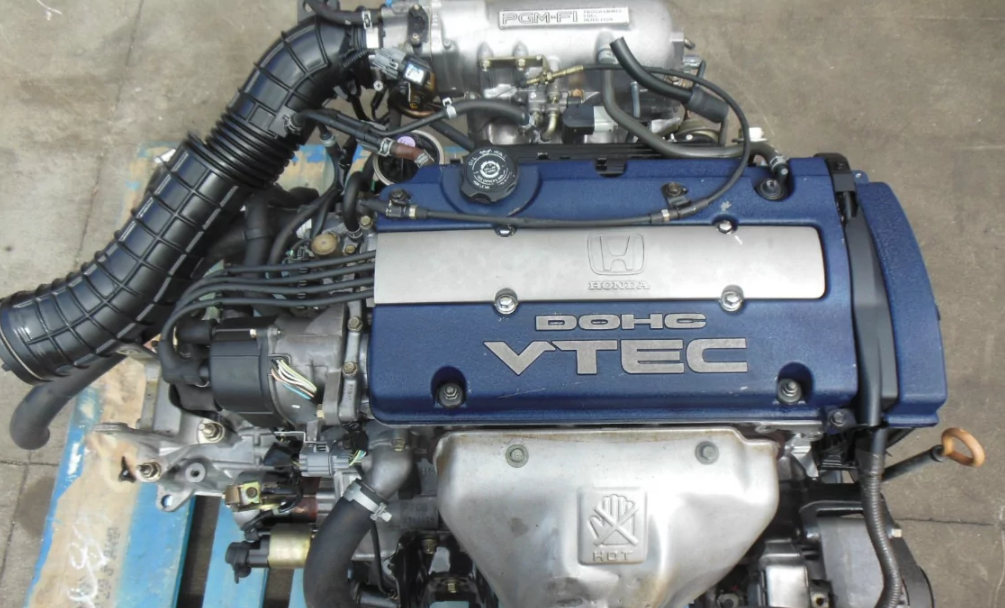

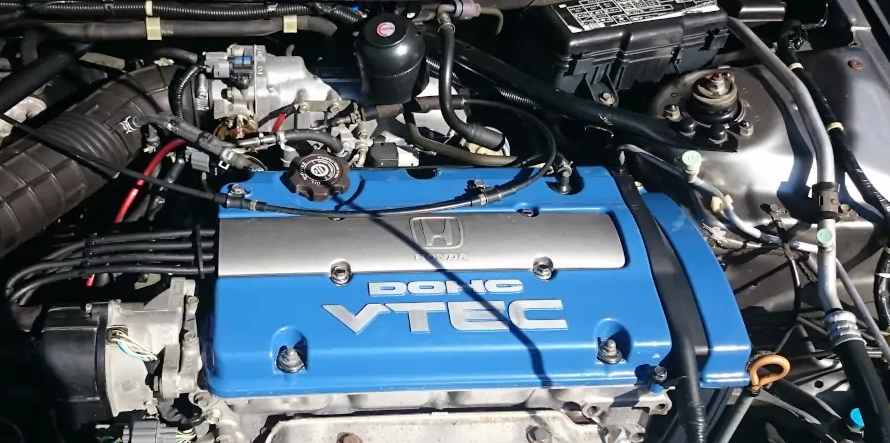

From 1993 to 2002, the company’s Japanese plant assembled the 2.0-liter Honda F20B engine, which was then fitted to various versions of the well-liked fourth and fifth generation Accord models. The F20B power unit was manufactured with and without the VTEC system, as well as in SOHC and DOHC versions.
The internal combustion engines F18B, F20A, F20C, F22B, and F23A are also part of the F-series.
The engine was mounted on:
- Honda Accord 5 (CD) in 1993 – 1997;
- Honda Accord 6 (CG) in 1997 – 2002.
Specifications
| Production years | 1993-2002 |
| Displacement, cc | 1997 |
| Fuel system | injector |
| Power output, hp | 135 – 150 (SOHC: F20B3, F20B6) 180 – 200 (DOHC: F20B) |
| Torque output, Nm | 180 – 190 (SOHC: F20B3, F20B6) 195 – 200 (DOHC: F20B) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 88 |
| Compression ratio | 9.0 – 9.8 (SOHC: F20B3, F20B6) 11 (DOHC: F20B) |
| Features | SOHC (SOHC: F20B3, F20B6) DOHC (DOHC: F20B) |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | VTEC (for SOHC 150hp, DOHC 200hp) |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.2 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Honda Accord 2002) — city — highway — combined |
11.4 6.9 8.6 |
| Engine lifespan, km | ~330 000 |
| Weight, kg | 150 |
Disadvantages of the Honda F20B engine
Owners of cars with this engine typically complain about how much oil they use.
Regular coolant or lubricant leaks come in second.
Contamination of the idle or EGR valve is the cause of tripping and floating revolutions.
Electrical malfunctions are the cause of the inhibited response to the gas pedal.
Every 40,000 kilometers, the valves must be adjusted because there are no hydraulic lifters.
Honda F20B Engine Repair Parts List
| Full name of the part | Part code |
| Piston rings Honda F20A d85.0 STD 1.2-1.2-2.8 (13011-PT0-B01) 4 cylinders TP | 32374-STD |
| Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky (5.5x29x115) | HMA1000 |
| Exhaust valve Honda D13/15/16 5.5x25x118.8 UM | 16-VX173 |
| Valve | V91730 |
| Valve guide bush | VAG92397 |
| Valve guide bush | VAG96221 |
| Piston rings Honda F20A/F20B/F22B d85.0 STD 1.2–1.2–3.0 4 cylinders TP | 32380-STD |
| Valve | V94096 |
| Valve | V94095 |
| Inlet valve | 14711-PDA-E00 |
| Exhaust valve | 14721-PDA-E00 |
| BELT TIMING BELT | TB353 |
| BELT TIMING BELT | TB354 |
| Timing belt included | CT 799 K1 |
| Toothed belt 112×240 Honda Contitech | CT1001 |
| Toothed belt 70×160 Honda Accord 2.0-2.2 16V Contitech | CT 800 |
| Timing repair kit | CT1001K1 |
| Timing drive repair kit | CT 800 K1 |
| Toothed belt 113×240 Honda Contitech | CT 799 |
| Valve cap inlet Honda color code “white” (12210-P45-G01) Elring (Inlet 5,5 x 11/13×10 /ACM PR color code “white”) | 130.560 |
| Oil scraper cap (exhaust. 5,5 x 11/13×10 HONDA /ACM. Black spring) | 130.860 |
| Valve stem seals (130.860+130.560) (set 16 things (130.860+130.560) Black spring = exhaust, White spring = inlet) | 084.300 |
| Complete set of Honda gaskets F20A/F22A 1989 (061A1-PT3-000+) Eristic | EF6090 |
| Head gasket Honda F20A/F22A 1989 (12251-PT0-004) Eristic | EG609 |
| Exhaust manifold gasket | JD5749 |
| Head gasket | BS700 |
| Water pump | 50 005 080 |
| Water pump | 50005081 |
| Basic liners Honda F20A/F22B/H23A Taiho | M459H-STD |
| Basic liners Honda F18/F20/F22, H22A 16V 93- NDC (set) | MS-2213GP STD |
| Connecting rod bushings Honda Accord A20A 87- Taiho (for motors G20/G25 – two sets) | R454H-STD |
| Connecting rod bushings Honda F20A/F22B/H23A Taiho | R458H-STD |
| Connecting rod bushings (set) | CB-2213GP STD |
| Connecting rod bushings (set) | CB-2200GP STD |
| Semi-rings persistent Honda F20A/F22B/H23A Taiho | T459A-STD |
| Semi-rings persistent | TW-2213A STD |
| Spark plug DOUBLE COPPER (RC9MCC4) Champion (RC9MCC4) | OE089 /T10 |
| Air filter Honda Accord 1.8i-2.0i-2.2i-2.3i 16V KS | 50 013 843 |
| Oil filter h=103.0 Honda KS Original /10 | 50 013 146 |
| Oil filter Ford/Honda h=87.0 d=66.0 Champion (change to COF102126S) | F126 /606 |
| Fuel filter Honda Accord 2.0i-2.3i 16V, Ford Mondeo 1.8 TD KS | 50 013 828 |
| Cabin filter | 50013780 |
| Cabin ventilation filter | 50 013 957 |
