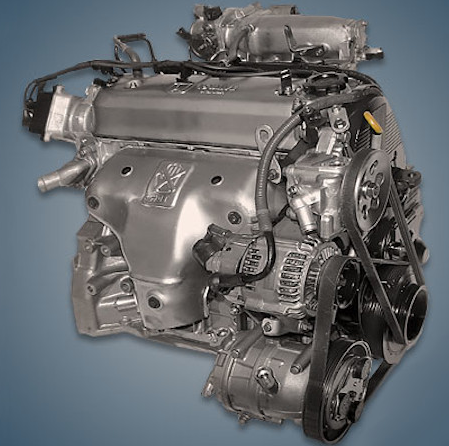

From 1991 to 1997, the 2.2-liter Honda F22B engine was manufactured at the company’s Japanese facility and fitted to well-known models like the Accord, Prelude, and Odyssey minivan. Both SOHC and DOHC versions of the F22B power unit, with and without the VTEC system, were manufactured.
Internal combustion engines F18B, F20A, F20B, F20C, and F23A are also part of the F-series.
The engine was mounted on:
- Acura CL 1 (YA) in 1996 – 1997;
- Honda Accord 5 (CD) in 1993 – 1997;
- Honda Odyssey 1 (RA) in 1994 -1999;
- Honda Prelude 4 (BA8) in 1991 – 1996;
- Honda Prelude 5 (BB) in 1996 – 2001.
Specifications
| Production years | 1991-1997 |
| Displacement, cc | 2156 |
| Fuel system | injector |
| Power output, hp | 130 (SOHC: F22B2, F22B3, F22B6, F22B8) 150 (SOHC: F22B5) 145 (SOHC+VTEC: F22B1) 160 (DOHC: F22B) |
| Torque output, Nm | 190 (SOHC: F22B2, F22B3, F22B6, F22B8) 200 (SOHC: F22B5) 200 (SOHC+VTEC: F22B1) 215 (DOHC: F22B) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 95 |
| Compression ratio | 8.8 (SOHC: F22B2, F22B3, F22B6, F22B8) 9.8 (SOHC: F22B5) 8.8 (SOHC+VTEC: F22B1) 9.3 (DOHC: F22B) |
| Features | SOHC (F22B1, F22B2, F22B3, F22B5, F22B6, F22B8) DOHC (F22B) |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no (SOHC: F22B2, F22B3, F22B6, F22B8) no (SOHC: F22B5) VTEC (SOHC+VTEC: F22B1) no (DOHC: F22B) |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Honda Odyssey 1995) — city — highway — combined |
13.9 8.2 10.4 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 145 |
Disadvantages of the Honda F22B engine
Regular oil and coolant leaks are the motor’s main complaints.
Rings typically lie down and the oil burn starts after 100–150 thousand kilometers.
Unstable engine operation is frequently caused by a dirty EGR or idle valve.
Keep an eye on the timing belt’s condition; it has a 90,000 km lifespan and bends the valve when it breaks.
The valves are adjusted every 40,000 kilometers due to the lack of hydraulic compensators.
Honda F22 Engine Modifications
The F22A1 engine, which powers the Accord and Prelude, has a compression ratio of 8.8 and produces 125 horsepower at 5200 rpm for the Accord and an additional 10 horsepower for the American Prelude through control unit customization.
The European market version, F22A3/F22A7, has a compression ratio of 9.8, camshafts from F22A6, an outlet from F22A4, and 150 horsepower at 5900 rpm.
The F22A4 is an analog of the F22A1 with a different outlet and 130 horsepower at 5200 rpm.
The F22A6 is an analog of the F22A1, but it has a different camshaft, intake, outlet, and control unit setting. At 5600 rpm, power rose to 140 horsepower.
Australia’s equivalent of F22A6 is F22A9.
Similar to F22A and H23A, F22B has a twin-shaft cylinder head and a 9.3 compression ratio. At 6000 rpm, these DOHC motors produce 160 horsepower.
The F22B1 and F22A engines are comparable, but the heads of these engines have a fuel-efficient VTEC system.
The F22 engine’s top model is the F22C1.
F22B / F22C Engine Repair Parts List
| Full name of the part | Part code |
| Valve cap inlet Honda color code “white” (12210-P45-G01) Elring | 130.560 |
| Oil scraper cap | 130.860 |
| Valve stem seals (130.860+130.560) | 084.300 |
| Stuffing box | NJ353 |
| Basic liners Honda F20A/F22B/H23A Taiho | M459H-STD |
| Basic liners Honda F20A/F22B/H23A Taiho | R458H-STD |
| Spark plug DOUBLE COPPER (RC9MCC4) Champion | OE089 /T10 |
| Basic liners Honda F18/F20/F22, H22A 16V 93- NDC | MS-2213GP STD |
| Semi-rings persistent Honda F20A/F22B/H23A Taiho | T459A-STD |
| Semi-rings persistent | TW-2213A STD |
| Valve | V91730 |
| Exhaust valve Honda D13/15/16 5.5x25x118.8 UM | 16-VX173 |
| Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky | HMA1000 |
| Valve guide bush | VAG92397 |
| Valve guide bush | VAG96221 |
| Water pump | 50 005 080 |
| Connecting rod bushings | CB-2213GP STD |
| Piston without rings Honda F22A d85.0 STD (13101-PT3-A01) Teikin | 38651 STD |
| Piston without rings Honda F22A d85.0+0.50 (13101-PT3-A01) Teikin | 38651 0.50 |
| Piston without rings Honda F22A d85.0+1.00 (13101-PT3-A01) Teikin | 38651 1.00 |
| Piston rings Honda F22A d85.0 STD 1.2-1.2-2.8 (13011-PT4-X01) 4 cylinders TP | 32378-STD |
| Valve | V94571 |
| BELT TIMING BELT | TB353 |
| BELT TIMING BELT | TB354 |
| Complete set of Honda gaskets F20A/F22A 1989 (061A1-PT3-000+) Eristic | EF6090 |
| Gasket Set, cylinder head | 02-52695-01 |
| Upper gasket set | DS700 |
| Bottom set of gaskets | ES700 |
| Head gasket | BS700 |
| Gasket, cylinder head | 61-52695-00 |
| Gasket, oil pan | 71-52663-00 |
| Pallet gasket | JJ417 |
| Valve cover gasket | JN755 |
| Valve cover gasket | 15-52664-01 |
| Gasket, intake manifold | 70-52661-00 |
| Gasket, exhaust manifold | 70-52662-00 |
| Manifold gasket | JC883 |
| Manifold gasket | JC885 |
| Stuffing box | PA425 |
| Stuffing box | PA969 |
| Stuffing box | PA970 |
| Timing belt included | CT 799 K1 |
| Toothed belt 112×240 Honda Contitech | CT1001 |
| Toothed belt 113×240 Honda Contitech | CT 799 |
| Toothed belt 70×160 Honda Accord 2.0-2.2 16V Contitech | CT 800 |
| Timing repair kit | CT1001K1 |
| Timing drive repair kit | CT 800 K1 |
| Oil filter h=103.0 Honda KS Original /10 | 50 013 146 |
| Piston rings Honda F20A/F20B/F22B d85.0 STD 1.2–1.2–3.0 4 cylinders TP | 32380-STD |
| Exhaust manifold gasket | JD5749 |
| Exhaust manifold gasket | JD5749 |
| Fuel filter Honda Accord 1.8i-2.2i 16V, Civic 1.5i-1.8i 16V KS | 50 013 824 |
| V-ribbed belt | 6 PK 1054 |
| Inlet valve | 14711-PDA-E00 |
| Exhaust valve | 14721-PDA-E00 |
