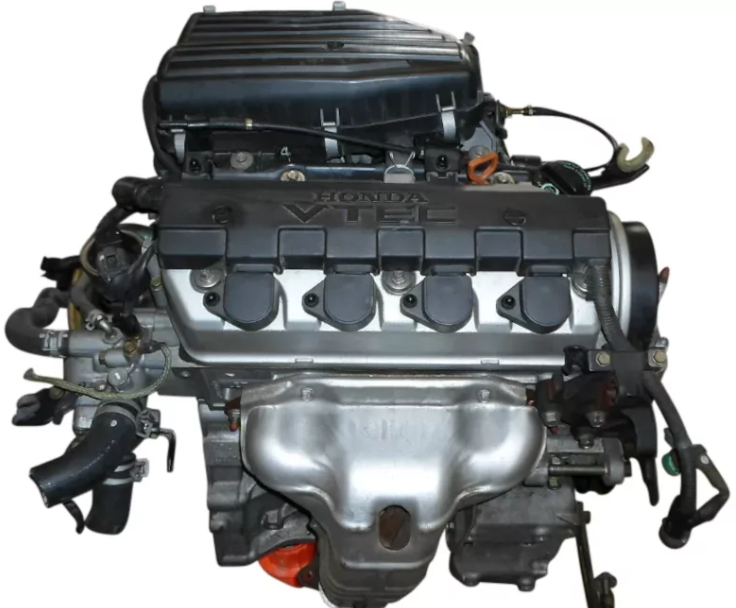

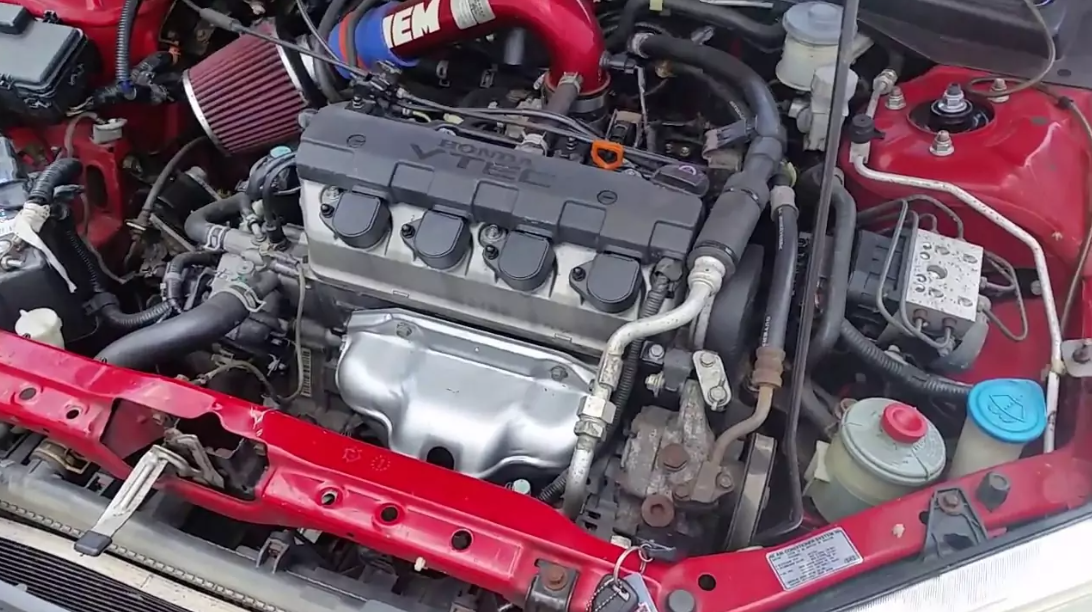

From 2000 to 2007, the company produced the 1.7-liter Honda D17A gasoline engine, which was fitted on popular Japanese models like the Civic, FR-V, and Stream minivan. There are two categories of D17A power units: those with a VTEC system and those without.
Internal combustion engines (D13B, D14A, D15B, and D16A) are also part of the D-series.
The engine was mounted on:
- Acura EL 2 (ES) in 2001 – 2005;
- Honda Civic 7 (ES) in 2000 – 2005;
- Honda FR-V 1 (BE) in 2004 – 2007;
- Honda Stream 1 (RN) in 2000 – 2006.
Specifications
| Production years | 2000-2007 |
| Displacement, cc | 1668 |
| Fuel system | injector |
| Power output, hp | 115 – 135 |
| Torque output, Nm | 145 – 155 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 94.4 |
| Compression ratio | 9.5 – 9.9 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.5 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Honda Stream 2001) — city — highway — combined |
9.9 6.5 7.7 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 125 |
Disadvantages of the Honda D17A engine
Although this engine is dependable, it may begin to use oil after 150,000 kilometers.
Poor start-up in cold weather is another annoying aspect of the device.
Floating rpm is frequently caused by contamination of the throttle body.
The valve frequently bends when the timing belt breaks, which lasts for roughly 100,000 kilometers.
There are no hydraulic compensators, and thermal valve clearances are changed every 40,000 kilometers.
The largest engine in the D series was the D17A, which debuted in 2000. This engine weighs 8% less than the D16 despite having a larger displacement. Although the D17 cylinder block is reinforced, its height of 212 mm is the same as that of the D16. The block contains a crankshaft with a 94.4 mm piston stroke, new pistons with a 30 mm compression height, and connecting rods that are 137 mm long. The working volume rose to 1.7 liters as a result of all of this.
A single-shaft SOHC cylinder head with 16 valves, modified intake ports, and modified combustion chambers sits atop the cylinder block.
Additionally, a new plastic intake manifold designed for medium speeds was installed. To enhance environmental performance, the D17A has a new exhaust manifold and a new catalyst.
The timing belt drive has a narrower belt than the D16A. After 100,000 kilometers, the timing belt D17A needs to be replaced. Sometimes everything ends normally, but when it breaks, the motor bends the valve.
Every forty thousand kilometers, the D17A’s valve needs to be adjusted. Cold valve clearances are 0.18–0.22 mm at the inlet and 0.23–0.27 mm at the outlet.
Honda D17 engine modifications
D17A: Japanese modification featuring a VTEC system and a compression ratio of 9.9. 160 Nm of torque at 4800 rpm and 132 horsepower at 6300 rpm. mounted on a Honda Civic 7.
The D17A1 motor has no VTEC, a compression ratio of 9.5, 117 horsepower at 6100 rpm, and 149 Nm of torque at 4500 rpm. mounted on a Civic.
The North American D17A2 model has a VTEC system, a compression ratio of 9.9, 129 horsepower at 6300 rpm, and 154 Nm of torque at 4800 rpm. found on Acura EL, Civic, Stream, and FR-V.
D17A5 is a VTEC motor. Here, a different catalyst is employed in contrast to D17A2. 155 Nm of torque at 4800 rpm and 132 horsepower at 6300 rpm. installed on Stream and the Honda Civic.
D17A6: Fuel-efficient engine with VTEC-E technology. 9.9 compression ratio, 119 horsepower at 6100 rpm, and 150 Nm of torque at 4500 rpm. discovered on the Civic coupe.
Gas engine D17A7. It has connecting rods, intake and exhaust valves, and a 12.5 compression ratio. 101 horsepower at 6100 rpm and 133 Nm of torque at 4000 rpm. It was installed on a Honda Civic GX.
D17A8: no VTEC, same catalyst as D17A9, 9.9 compression ratio, 117 horsepower at 6100 rpm, and 149 Nm of torque at 4500 rpm. mounted on a European Civic.
D17A9: European D17A2, 125 horsepower at 6300 rpm and 145 Nm of torque at 4800 rpm.
D17Z2 is the Brazilian equivalent of D17A1.
D17Z3 is the Brazilian equivalent of D17A.
D17A Engine Repair Parts List
| Full name of the part | Part code |
| Piston without rings Honda D17A1 d75.0 STD (13010-PLM-A00) Teikin | 38170 STD |
| Piston rings Honda D17A1 d75.0 1.0–1.2–2.0 (13011-PLR-A00) 4 cylinders TP | 32400-STD |
| Head bolts Honda Civic 16V M10x1.25×140 (set 10 things) Elring | 706.120 |
| Inlet valve Honda D14 5.5x30x118.6 UM | 16-VN391 |
| Exhaust valve Honda D14 5.5x26x116 UM | 16-VX392 |
| Valve guide bush | VAG92397 |
| Valve guide bush | VAG96221 |
| Toothed belt 104×220 Honda Civic Contitech | CT1082 |
| Upper gasket set | CG5790 |
| Upper gasket set | CG5792 |
| Lower gasket set | 08-53323-01 |
| Head gasket Honda 1.4/1.6 Payen | AD5230 |
| Valve cover gasket | 15-53736-01 |
| Valve cover gasket | 270.470 |
| Exhaust manifold gasket | 270.460 |
| Intake manifold gasket | 71-53752-00 |
| Intake manifold gasket | 71-53784-00 |
| Valve cap inlet Honda color code “white” (12210-P45-G01) Elring | 130.560 |
| Oil scraper cap | 130.860 |
| Valve stem seals (130.860+130.560) | 084.300 |
| Stuffing box | 81-53224-00 |
| Stuffing box | 81-53323-00 |
| Stuffing box 37.5x50x6 Toyota Payen | NJ706 |
| Water pump assembled | 50 005 789 |
| Spark plug DOUBLE COPPER (RC9MCC4) Champion | OE089 /T10 |
| Air filter Honda Civic VI 1.7V (17220-PLC000) Knecht | LX 1689 |
| Oil filter Mazda/Mitsubishi Knecht | OC 196 |
| Oil filter Ford/Honda h=87.0 d=66.0 Champion | F126 /606 |
| Cabin filter Honda Civic 01-> | LA 122 |
| Sealant, change to 705.707 | 705.705 |
| Sealant-gasket Dirko HT red 70ml (-50°C/+300°C) (D176404A2) Elring (=705.705) | 705.707 |
| Piston without rings Honda D17A2 d75.0 STD (13010-PLR-A00) Teikin | 38169 STD |
