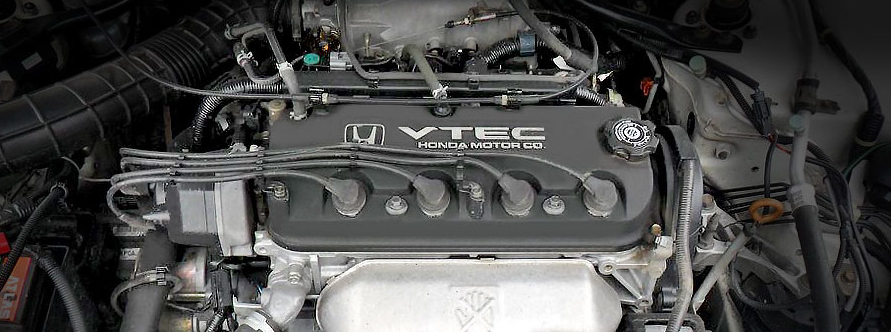

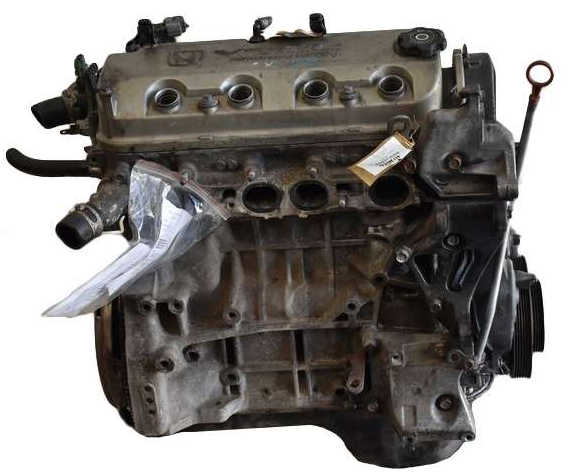

From 1993 to 2002, the company produced the 1.8-liter Honda F18B gasoline engine, which was fitted in the fifth and sixth generations of the widely used Accord model. There is only one version of the F18B motor, but it has different levels of forcing.
An injection version of Honda’s 1.8-liter F18 series engine is called the F18B. One of the flagship models in the Accord motor line was the power unit. The engine stands out for its good parameters, simplicity, lack of erratic electronic systems, recirculation, and other features that will be utilized later to satisfy environmental regulations.
Internal combustion engines F20A, F20B, F20C, F22B, and F23A are also part of the F-series.
The engine was installed on:
- Honda Accord 5 (CD) in 1993 – 1997;
- Honda Accord 6 (CG) in 1997 – 2002.
Specifications
| Production years | 1993-2002 |
| Displacement, cc | 1849 |
| Fuel system | injector |
| Power output, hp | 135 – 140 |
| Torque output, Nm | 165 – 175 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 81.5 |
| Compression ratio | 9.3 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | VTEC-E |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Honda Accord 1995) — city — highway — combined |
10.4 6.3 8.1 |
| Engine lifespan, km | ~320 000 |
| Weight, kg | 135 |
Disadvantages of the Honda F18B engine
The most common complaints from car owners are about coolant and lubricant leaks; after 100,000 to 150,000 kilometers, the oil here also starts to waste; the timing belt only lasts for 100,000 kilometers, and when it breaks, the valve typically bends;
The engine starts acting strangely as a result of contamination of the EGR and idle valves;
There are no hydraulic lifters, and valve clearances must be changed every 40,000 kilometers.
Honda F18B Engine Repair Parts List
| Full name of the part | Part code |
| Piston without rings Honda F18A d85.0 STD (13101-PT1-000) Teikin (Piston with pin, without piston rings) | 38150 STD |
| Cylinder head retaining bolts | HBS281 |
| Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky (5.5x29x115) | HMA1000 |
| Exhaust valve Honda D13/15/16 5.5x25x118.8 UM | 16-VX173 |
| Valve | V94096 |
| Valve | V91730 |
| Valve | V94095 |
| Valve guide bush | VAG92397 |
| Valve guide bush | VAG92398 |
| Valve guide bush | VAG96221 |
| Inlet valve Honda F18B2 5.5x34x116 UM | 16-VN428 |
| Inlet valve | 14711-PDA-E00 |
| Exhaust valve | 14721-PDA-E00 |
| Inlet valve Honda D12-D16 5.5x29x115 (14711-PM3-000) Rocky (5.5x29x115) | HMA1000 |
| BELT TIMING BELT | TB353 |
| BELT TIMING BELT | TB354 |
| Timing belt included | CT 799 K1 |
| Toothed belt 112×240 Honda Contitech | CT1001 |
| Toothed belt 113×240 Honda Contitech | CT 799 |
| Toothed belt 70×160 Honda Accord 2.0-2.2 16V Contitech | CT 800 |
| Timing repair kit | CT1001K1 |
| Timing drive repair kit | CT 800 K1 |
| Guide roller | 99918237 |
| Upper gasket set | 262.570 |
| Head gasket | 262.640 |
| Sealant Dirko grey 70ml, replacement of the number with 527.290 (04.10394-9385) | 036.166 |
| Valve stem seals (130.860+130.560) (set 16 things (130.860+130.560) Black spring = exhaust, White spring = inlet) | 084.300 |
| Valve cap inlet Honda color code “white” (12210-P45-G01) Elring (Inlet 5,5 x 11/13×10 /ACM PR color code “white”) | 130.560 |
| Oil scraper cap (exhaust. 5,5 x 11/13×10 HONDA /ACM. Black spring) | 130.860 |
| Stuffing box | NJ134 |
| Stuffing box 28x42x8 | 012.180 |
| Service kit for self-production of seals (paranite + metal) Reinz | 16-27250-03 |
| Solid material spacers Service-Kit (Sealing material (Format 210×300 mm) Abil 0,5 mm and 1,0 mm EWP 207 0,75 mm FW 522 (metal/soft material) 1,25 mm Silicone sealing compound Dirko S 20 ml) | 447.101 |
| Water pump | 50 005 080 |
| Water pump | 50005081 |
| Basic liners Honda F18/F20/F22, H22A 16V 93- NDC (set) | MS-2213GP STD |
| Basic liners Honda F20A/F22B/H23A Taiho | M459H-STD |
| Connecting rod bushings Honda Accord A20A 87- Taiho (for motors G20/G25 – two sets) | R454H-STD |
| Connecting rod bushings (set) | CB-2200GP STD |
| Semi-rings persistent Honda F20A/F22B/H23A Taiho | T459A-STD |
| Semi-rings persistent | TW-2213A STD |
| Oil filter h=103.0 Honda KS Original /10 | 50 013 146 |
| Fuel filter Honda Accord 1.8i-2.2i 16V, Civic 1.5i-1.8i 16V KS | 50 013 824 |
| Cabin ventilation filter | 50 013 957 |
| Sealant Dirko grey elastic, 70ml (-50°C/+180°C/300 C (MD997110, Z2156090) (=036.166) | 527.290 |
| Sealant kit: Dirko HT + Dirko S + Curil T Elring (20 ml Curil T+ 20 ml Dirko S + 20 ml Dirko HT) | 447.201 |
