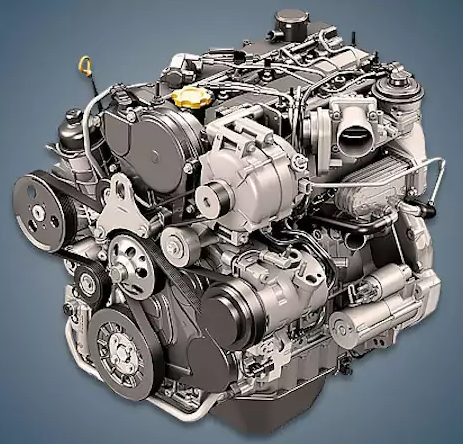

From 2006 to 2018, the Grand Voyager minivan and SUVs Cherokee, Liberty, Wrangler, and Nitro were equipped with the 2.8-liter R4 diesel engine Jeep ENS or 2.8 CRD. The Italian company VM Motori produces this diesel engine, which is also referred to as the RA 428 DOHC.
ENC, ENJ, ENS, ENR, EXF, EXJ, EXN, and EXA are all part of the VM Motori series.
Specifications
| Production years | 2006-2018 |
| Displacement, cc | 2766 |
| Fuel system | Common Rail |
| Power output, hp | 160 – 200 |
| Torque output, Nm | 360 – 460 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 94 |
| Piston stroke, mm | 100 |
| Compression ratio | 17.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTB1756VK |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.5 |
| Fuel type | diesel |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Jeep Cherokee 2009) — city — highway — combined |
12.2 7.8 9.4 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Chrysler Grand Voyager 5 (RT) in 2007 – 2016;
- Dodge Nitro 1 (KA) in 2007 – 2011;
- Jeep Cherokee 4 (KK) in 2007 – 2012;
- Jeep Wrangler 3 (JK) in 2006 – 2018.
Disadvantages of the ENS engine
The regulator valve of the high pressure fuel pump in this diesel engine’s fuel system is typically the source of concern;
Additionally, piezo injectors require more fuel and have fewer resources;
It is not very dependable, and the turbine frequently needs to be repaired after 100,000 kilometers;
Only the rocker breaks when the timing belt, which is intended to last 150,000 kilometers, breaks;
The fuel filter heater connector is frequently the location of air leaks.
