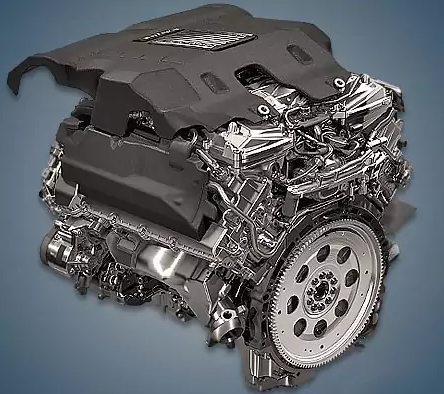

Popular SUVs like the Range Rover, Range Rover Sport, and Velar are equipped with the 5.0-liter Land Rover 508PS or 5.0 Supercharged engine, which has been manufactured since 2009. Additionally, Jaguar vehicles with the AJ133S index use this motor with an Eaton compressor.
AJ-V8 series: 306PS, 428PS, 448PN, 508PN, and 508PS.
Specifications
| Production years | since 2009 |
| Displacement, cc | 4999 |
| Fuel system | direct injection |
| Power output, hp | 450 – 600 |
| Torque output, Nm | 575 – 700 |
| Cylinder block | aluminum V8 |
| Block head | aluminum 32v |
| Cylinder bore, mm | 92.5 |
| Piston stroke, mm | 93 |
| Compression ratio | 9.5 |
| Features | intercooler |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | Eaton M112 |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 8.0 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Range Rover Supercharged 2018) — city — highway — combined |
18.0 9.9 12.8 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 220 |
The engine was installed on:
- Land Rover Range Rover 3 (L322) in 2009 – 2012; Range Rover 4 (L405) since 2012;
- Land Rover Range Rover Sport 1 (L320) in 2009 – 2013; Range Rover Sport 2 (L494) since 2013;
- Land Rover Range Rover Velar 1 (L560) since 2017.
Disadvantages of the Land Rover 508PS engine
The stretching of the timing chains at low mileage is the most well-known engine issue.
Additionally, the blower drive needs to be replaced because it can hum rather quickly.
Rarely, the cylinder head gasket breaks when valve seats come loose.
Remember to clean the fuel injectors and throttle body on a regular basis.
A pump and an extra cooling fan are further drawbacks.
