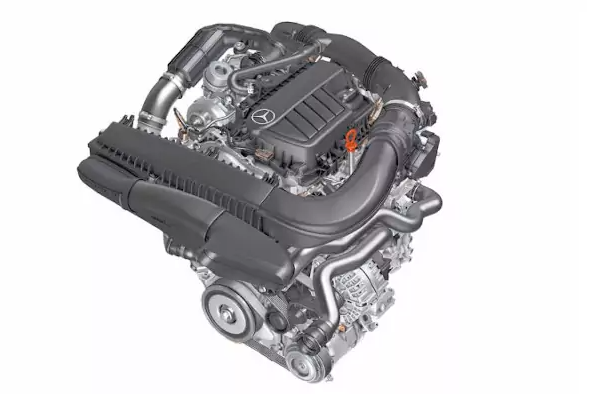

The OM626 is an in-line diesel engine with four cylinders. 1.6-liter displacement, DOHC, (dual) turbocharging, intercooler, common rail direct injection, piezo injectors, and four valves per cylinder. Aluminum cylinder head and cast iron block. for automobiles that have a longitudinal power unit.
An EGR system is installed in the engine. After passing through the particle filter and cooling, the outlet gases are fed back into the compressor. A selective neutralizer (SCR) is used for subsequent treatment. The engine satisfies the Euro-6 environmental standard because of this and other solutions.
Specifications
| Displacement, cc | 1598 |
| Power | 85 kW (115 hp) 100 kW (136 hp) |
| Torque output, Nm | 280 320 |
| Fuel type | diesel fuel |
| Fuel consumption, L/100 km | 3.8 – 4.2 |
| Configuration | inline, four-cylinder |
| Cylinder head | DOHC |
| Compression ratio | 15.7 |
| Cylinder bore, mm | 80 |
| Piston stroke, mm | 79.5 |
| Supercharger | Turbine |
| CO2 emission, g/km | 99 – 110 |
| Valves per cylinder | 4 |
| Start-stop system | yes |
